Home >> Chevy Truck >> 1982 >> S10,T10 P/U,Blazer V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Complete Body Wiring

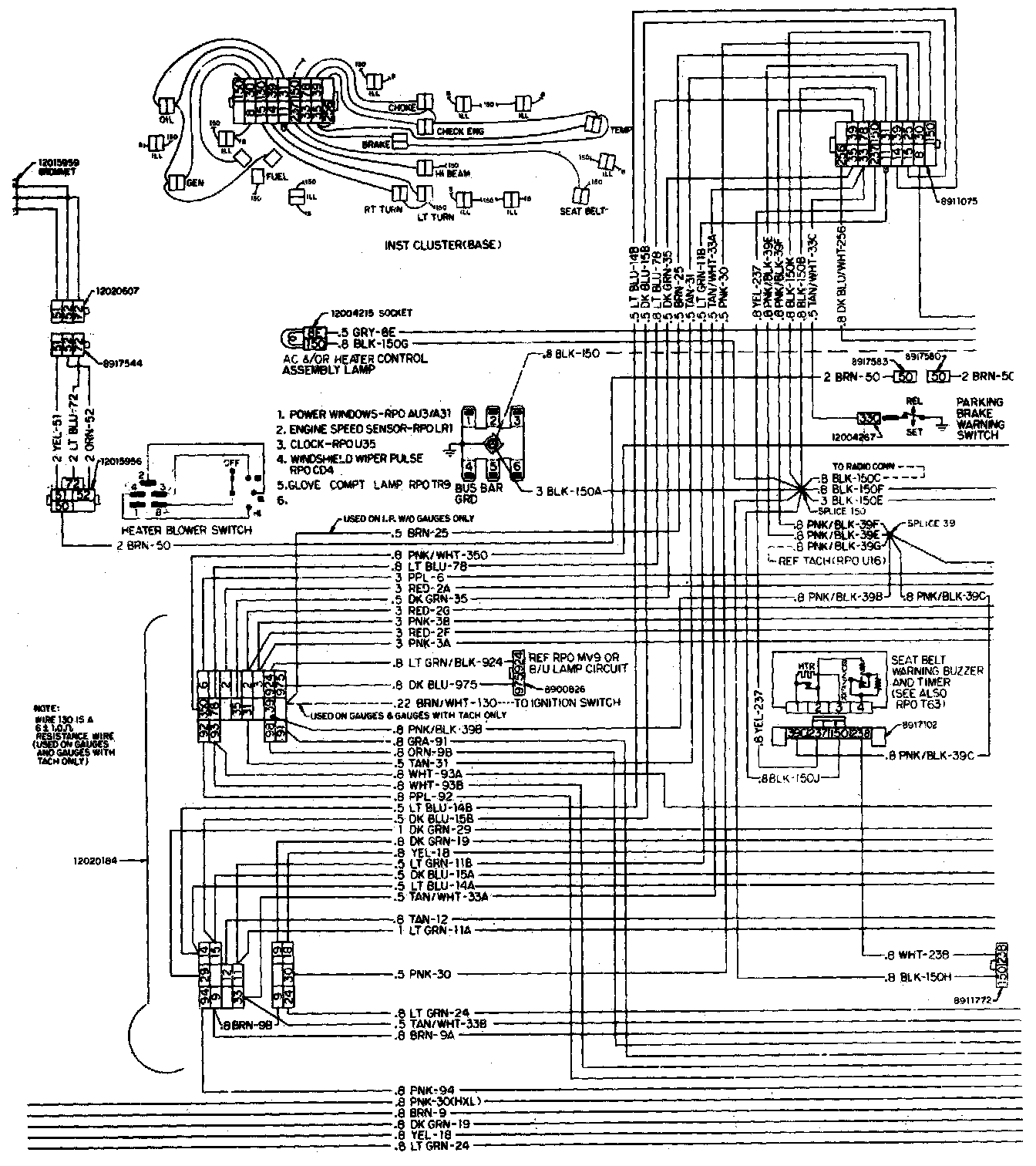

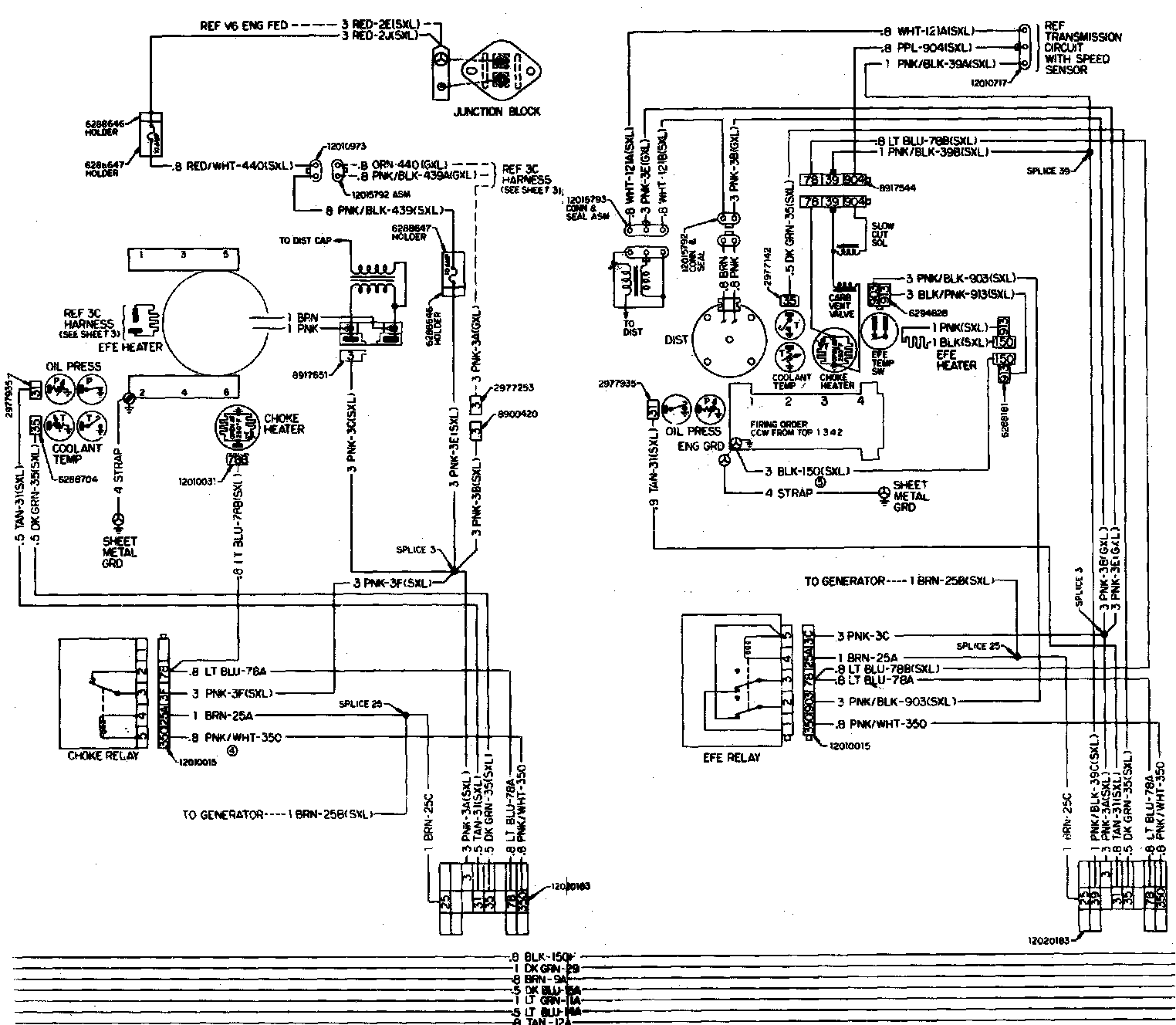

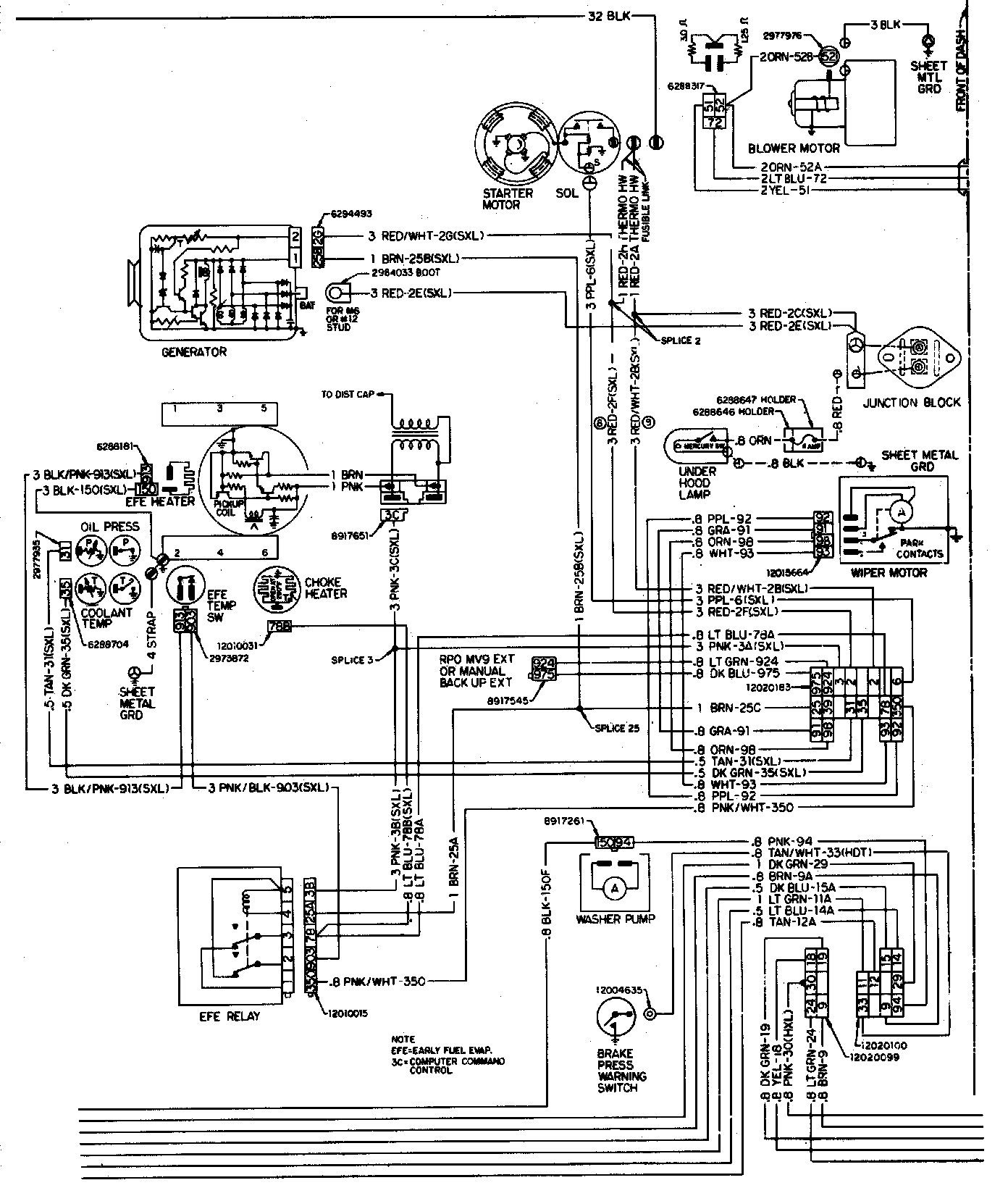

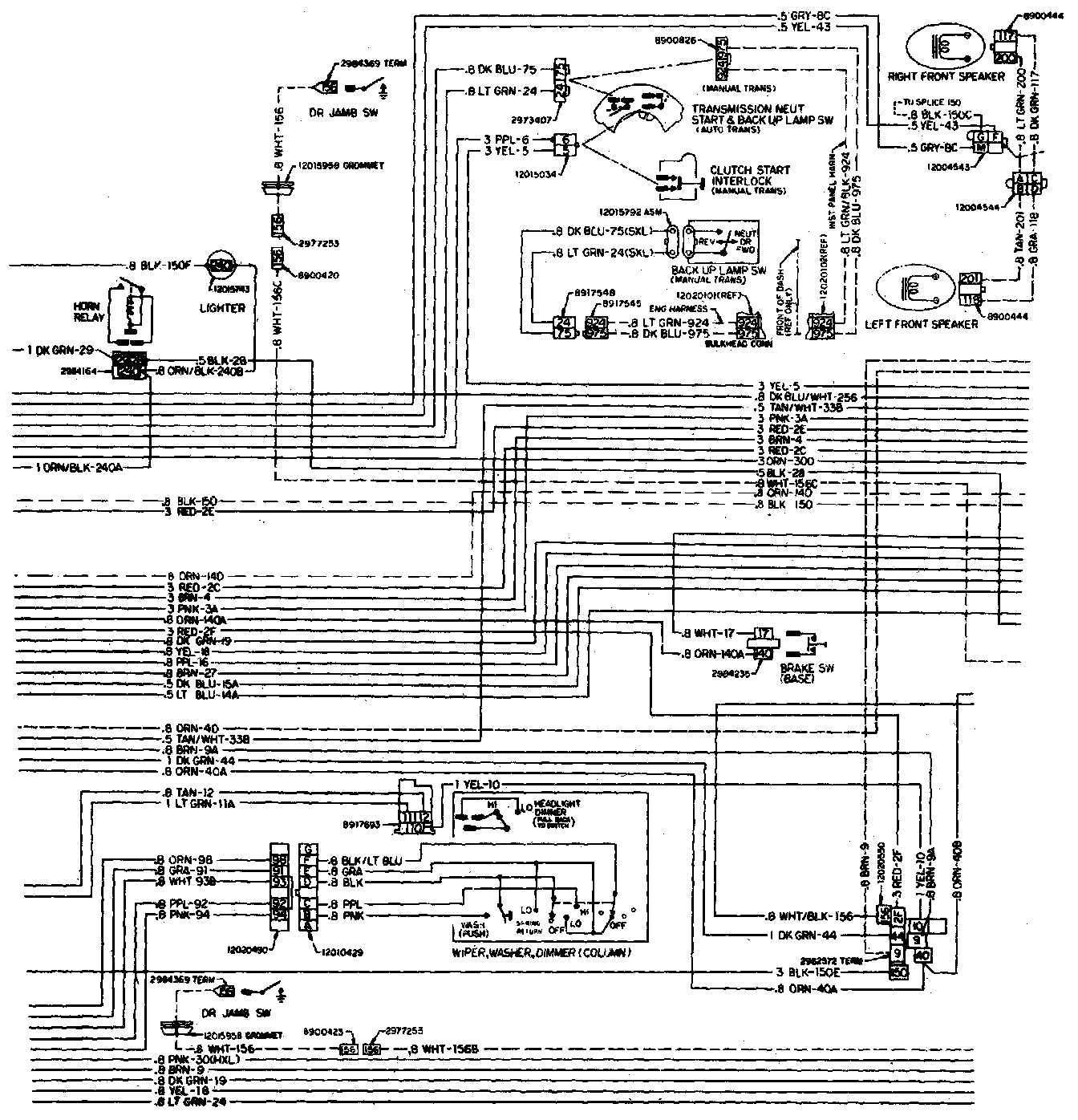

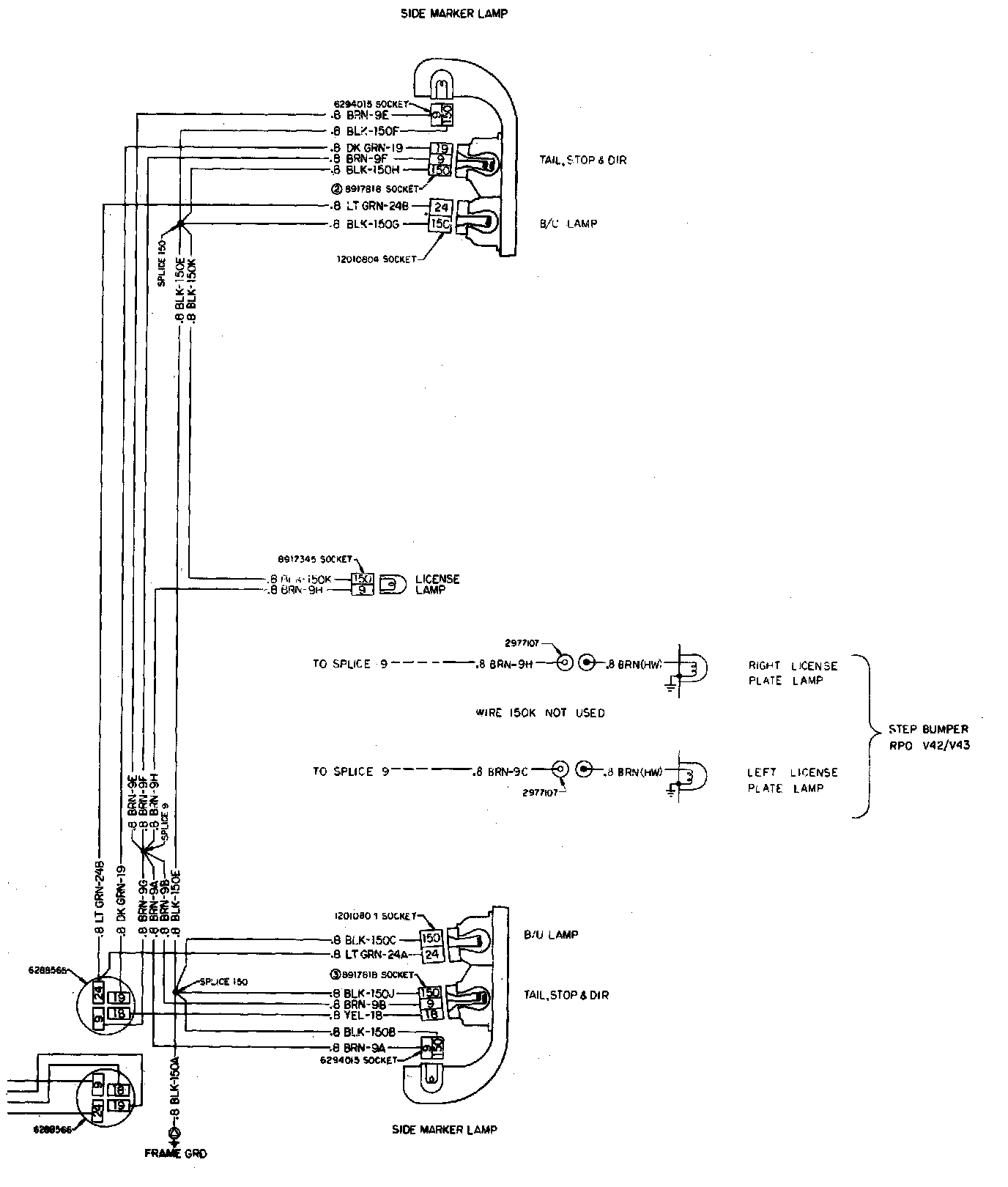

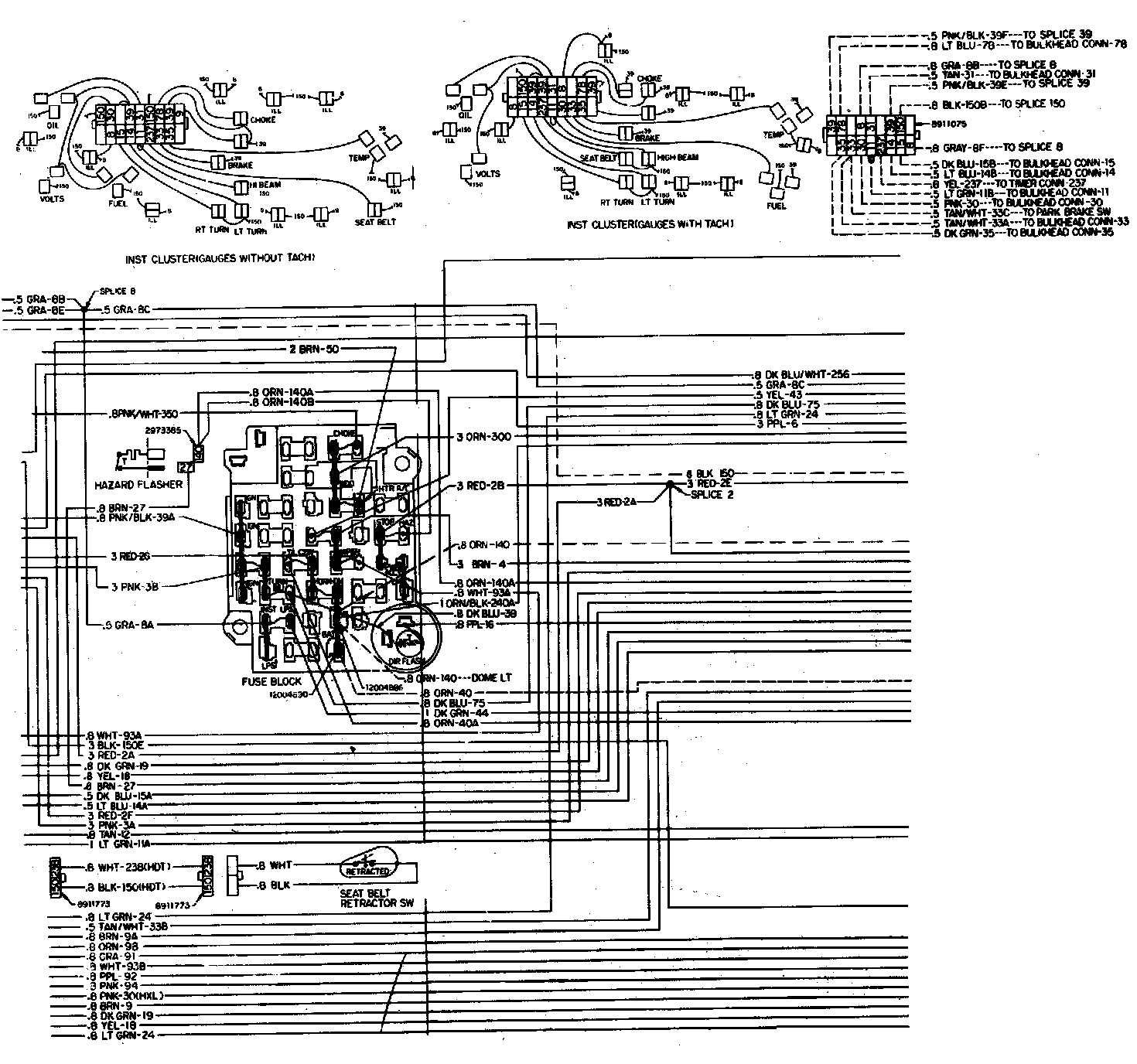

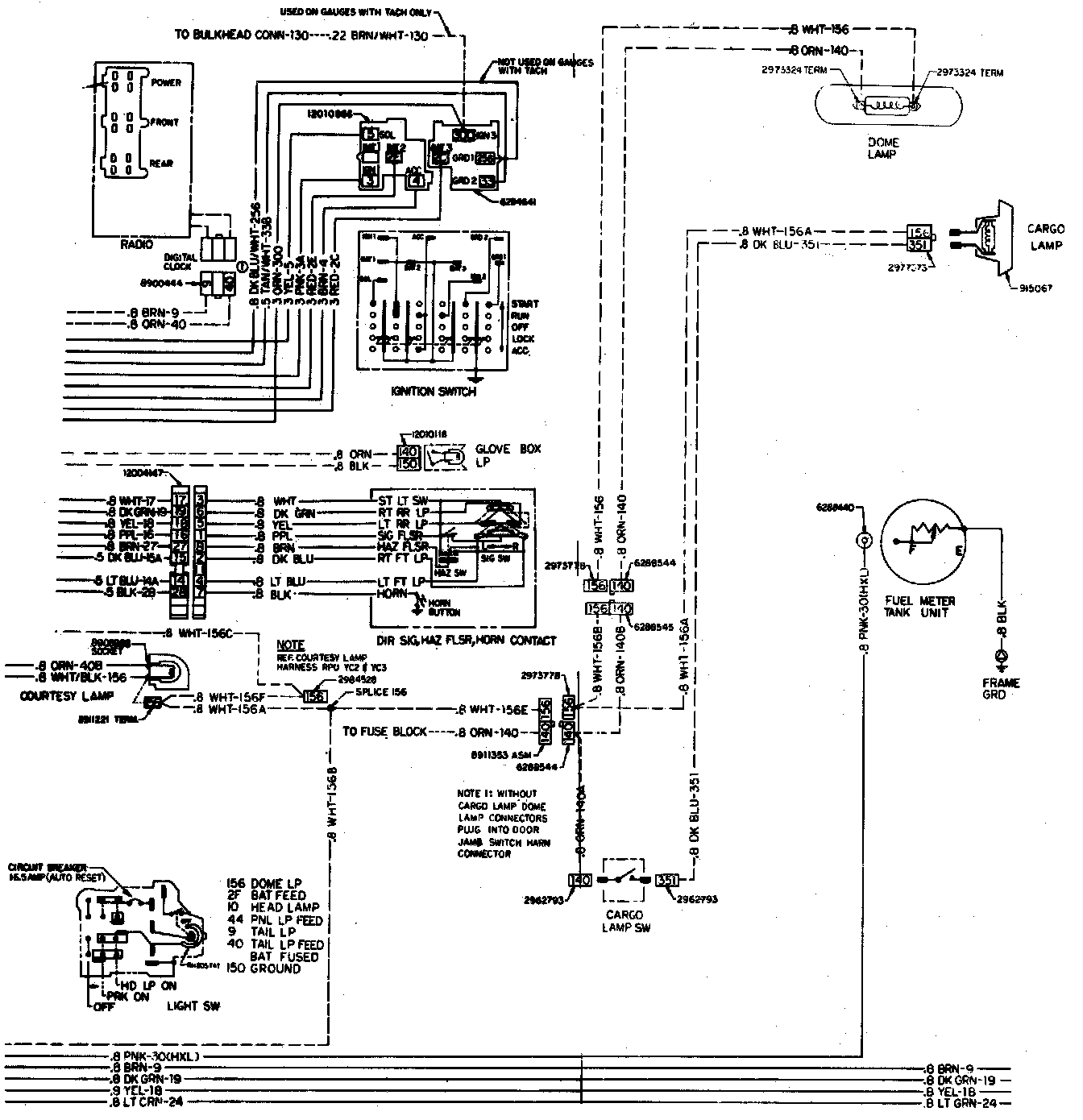

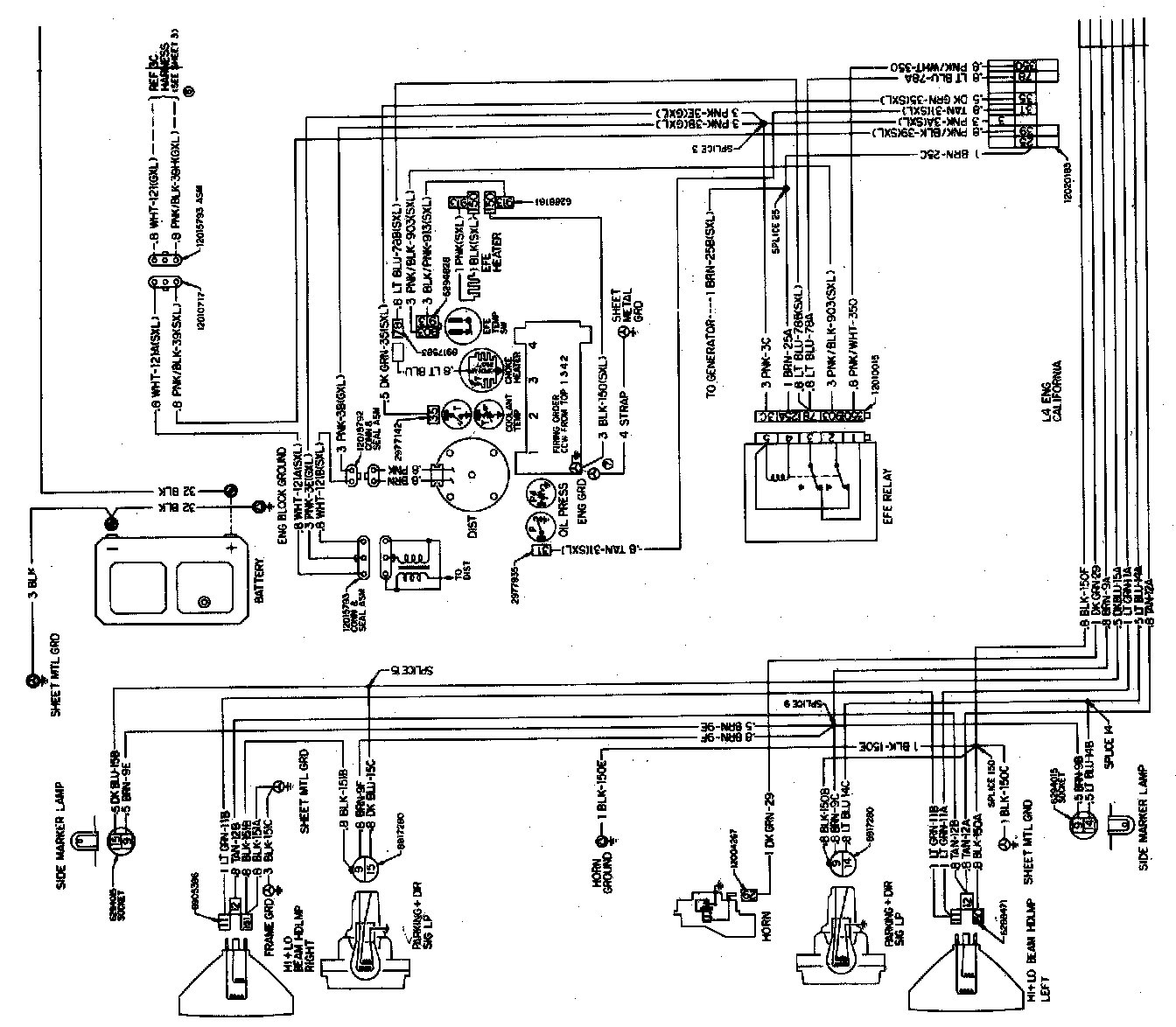

Complete Body Wiring




For wiring diagram information please refer to this complete Body and chassis wiring.
