Home
>>
Chevy Truck
>>
1982
>>
G 10 1/2 Ton Van V8-350 5.7L VIN L 4-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
A/C and Heater
>>
Rear Unit
Rear Unit

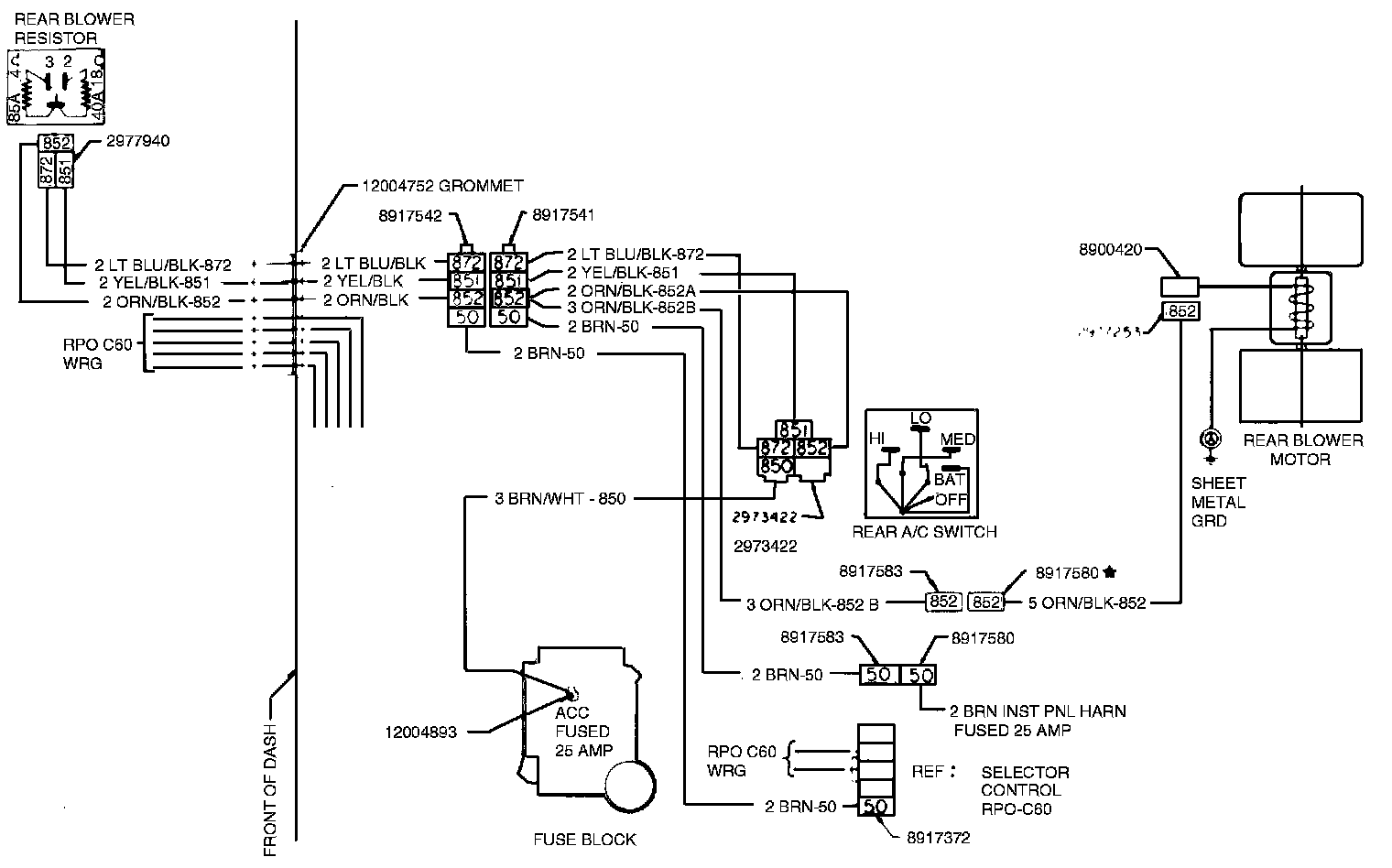

Rear Blower Motor Diagram:
