Chevy Truck
>>
1982
>>
Blazer 2WD L6-250 4.1L VIN D 2-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
A/C and Heater
A/C and Heater

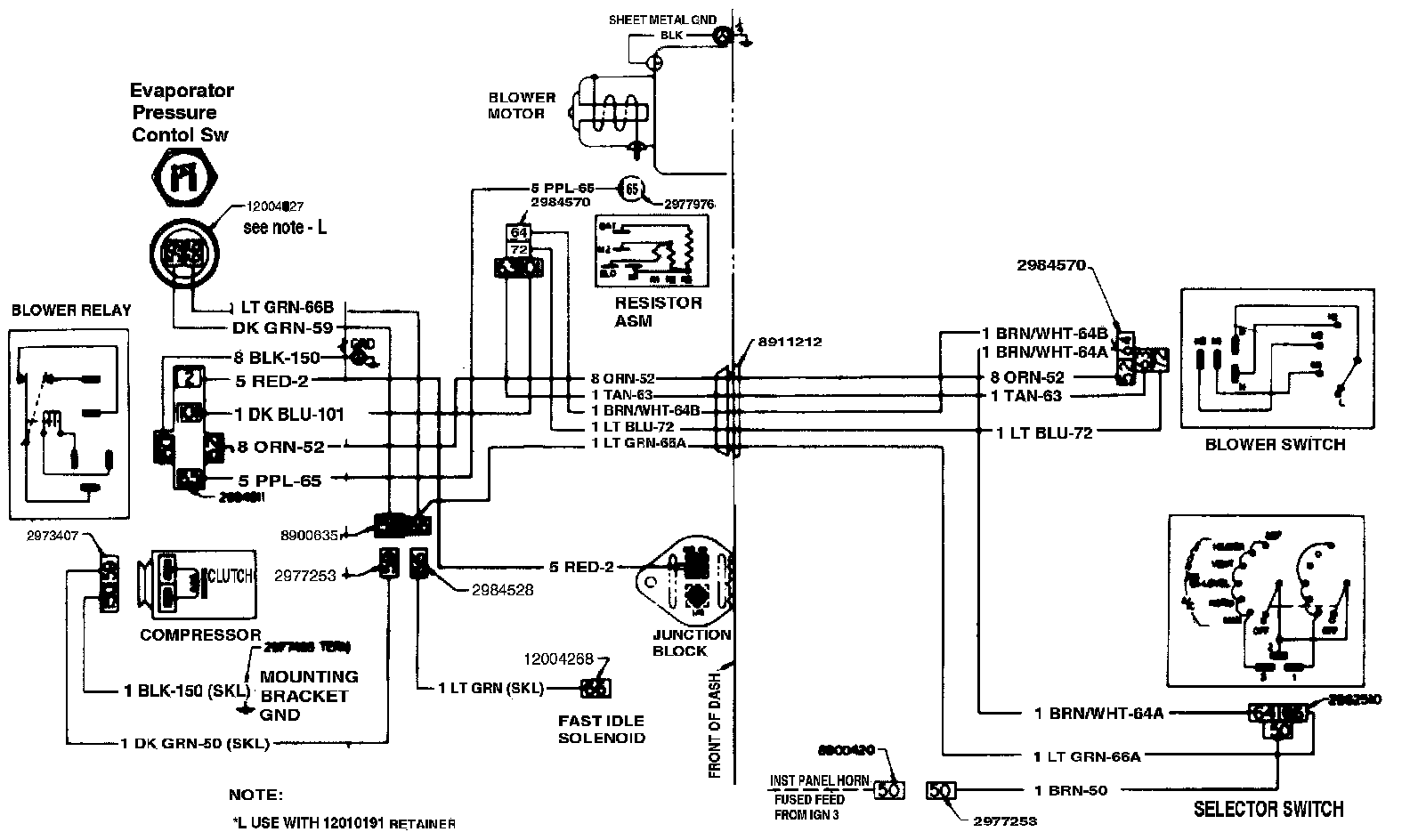

A/C System Controls Diagram:
