Diagrams
>>
Connector Views
>>
Refrigerant Temperature Sensor
Refrigerant Temperature Sensor

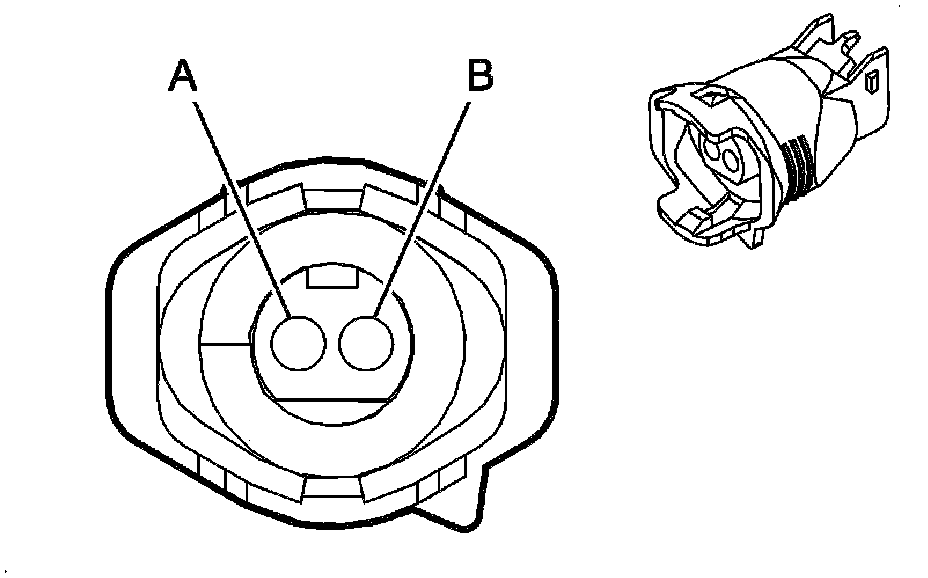

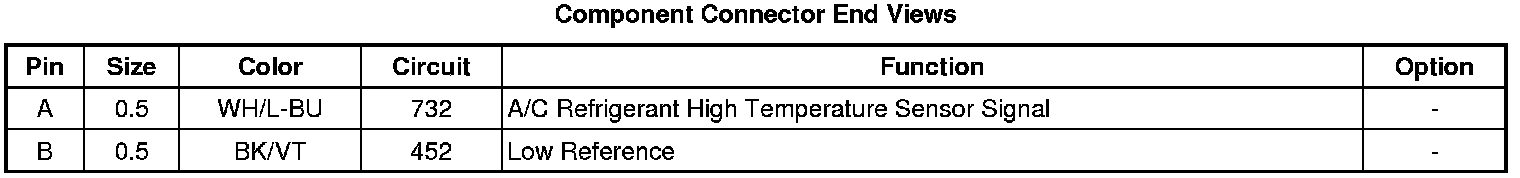

Component Connector End Views

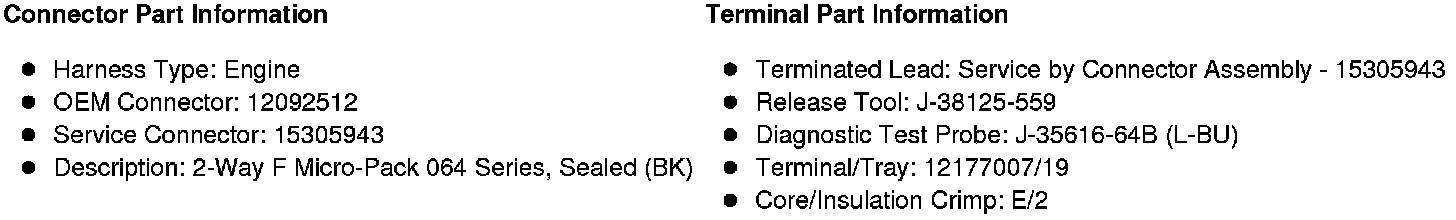

B222 A/C Refrigerant Low Side Temperature Sensor
