14V Power Module Jumper Connector

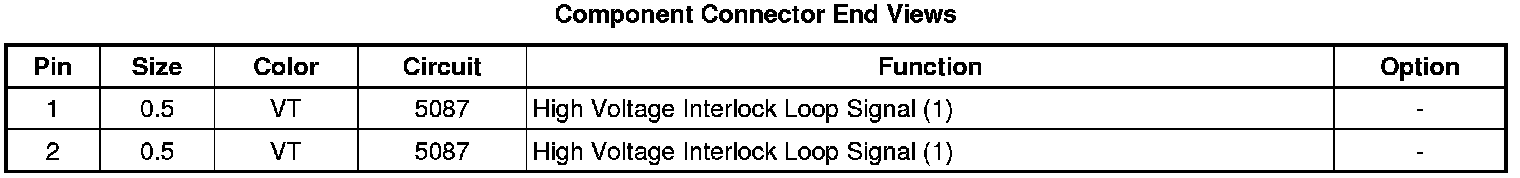

Component Connector End Views

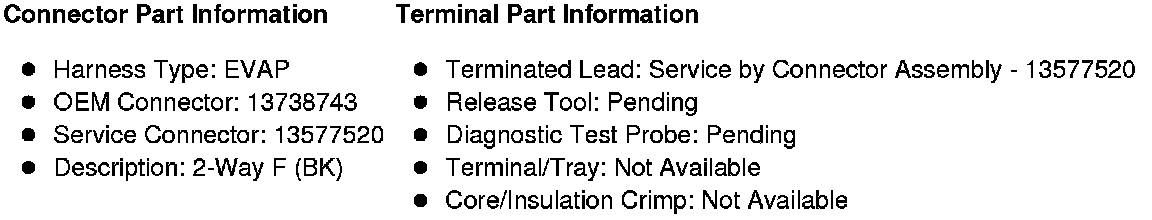

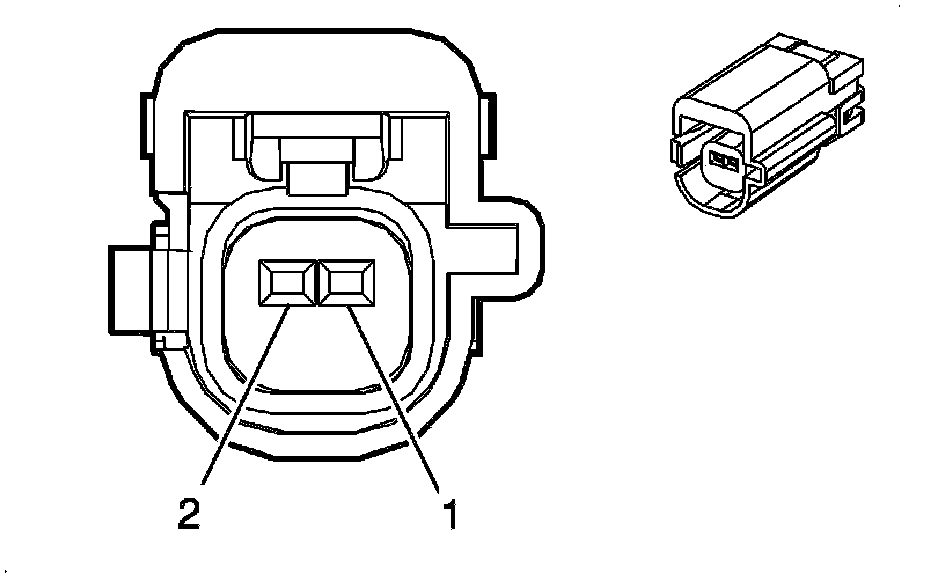

F117 14V Power Module Jumper Connector
