Hybrid Battery Pack Current Sensor
Hybrid Battery Pack Current Sensor

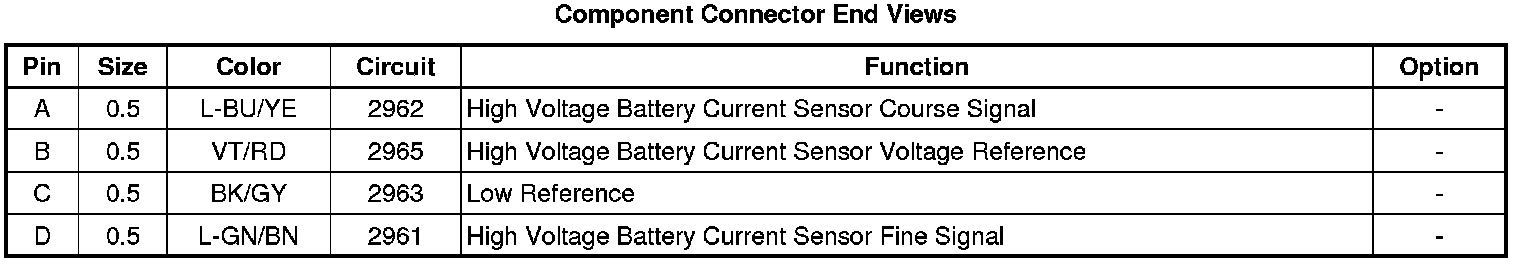

Component Connector End Views

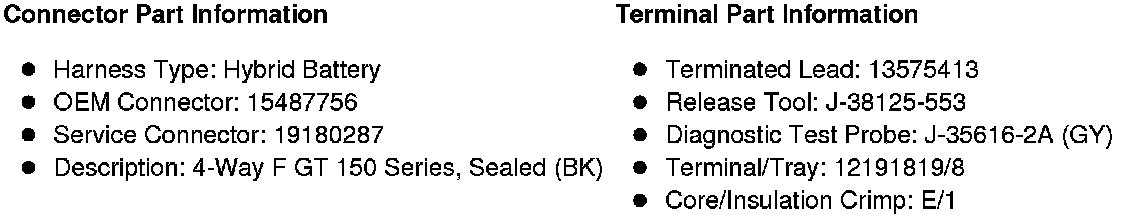

B30 Hybrid Battery Pack Current Sensor
