Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2013
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Door Handle Assembly - Driver
Door Handle Assembly - Driver

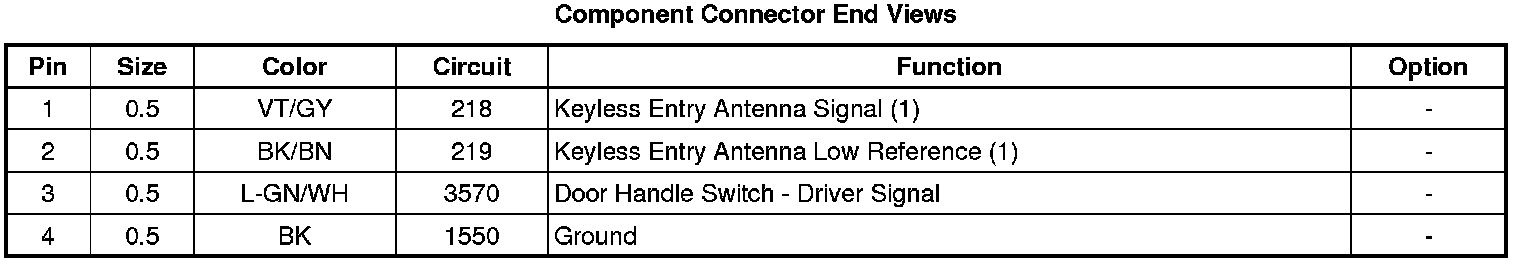

Component Connector End Views

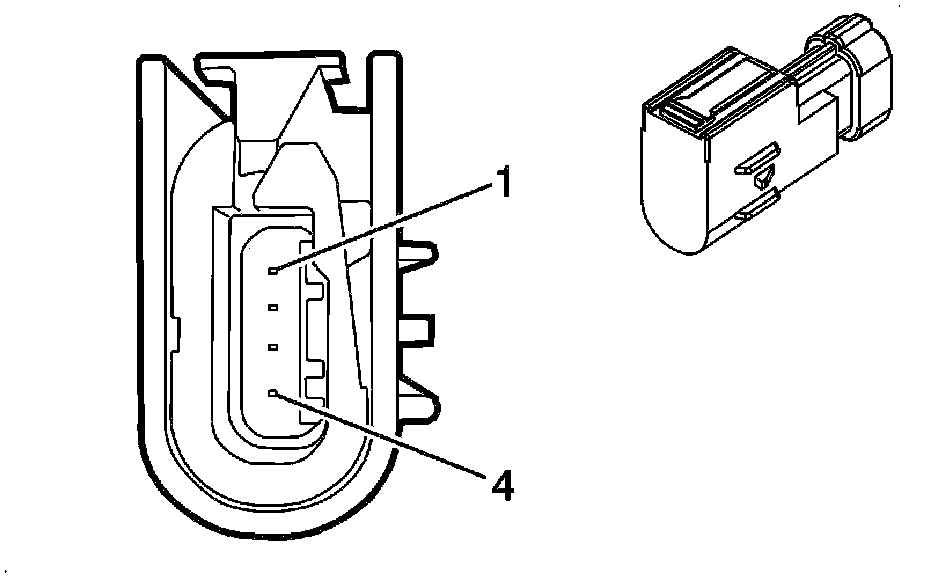

A24D Door Handle Assembly - Driver
