Trunk / Liftgate Switch
>>
Liftgate Unlatch Switch
Liftgate Unlatch Switch

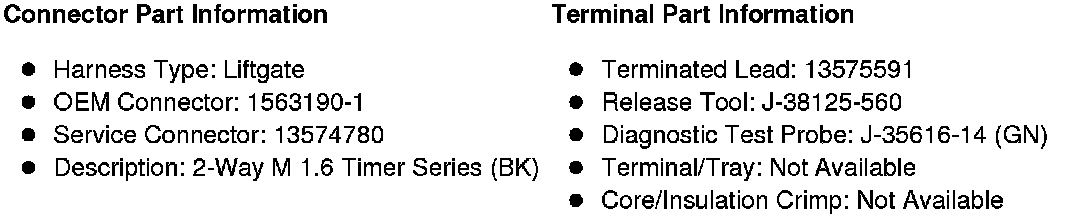

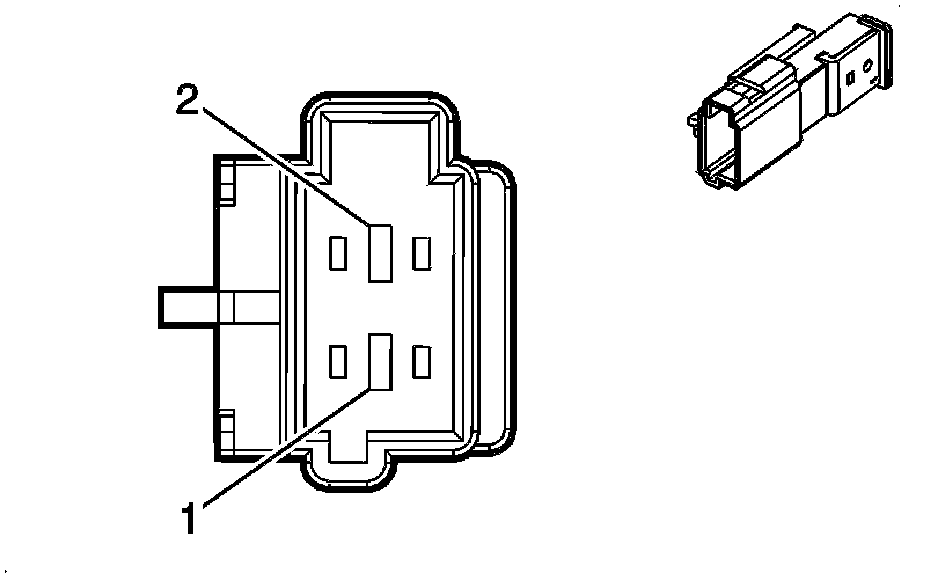

Component Connector End Views

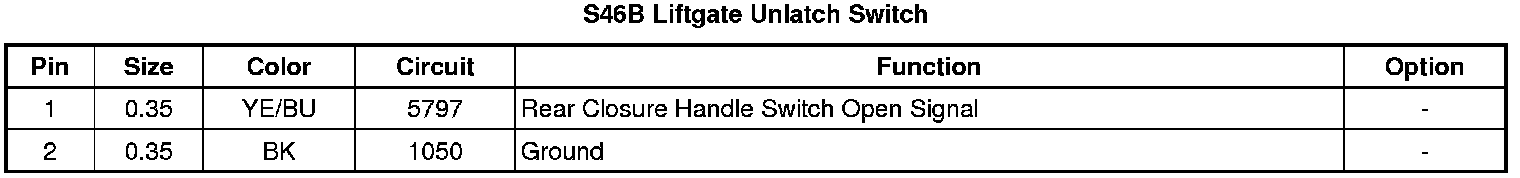

S46B Liftgate Unlatch Switch
