Compressor Control Valve Assembly: Locations

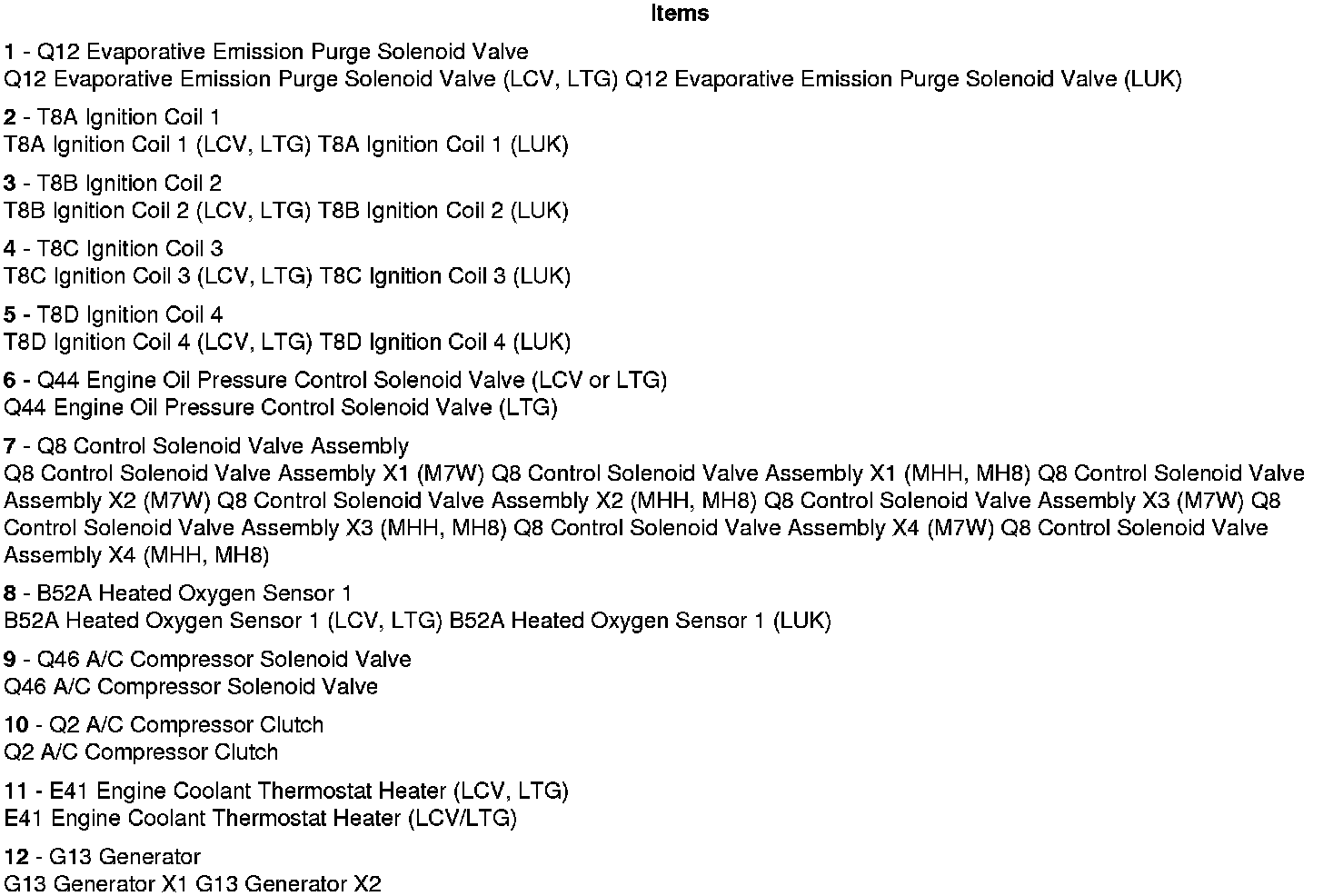

Powertrain Component Views

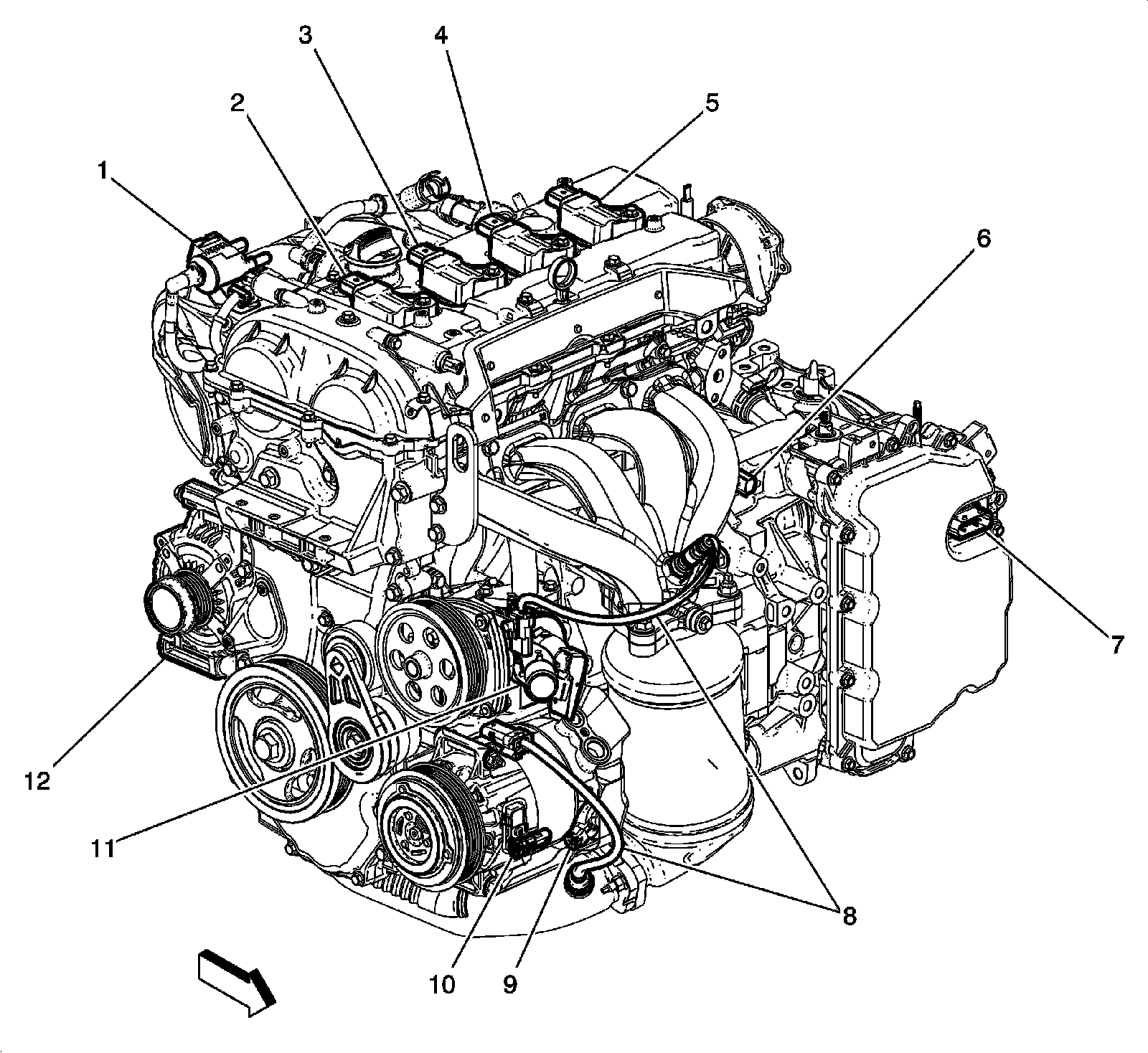

Right Front of Engine Components (LCV)
