Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch - Right Rear
Window Switch - Right Rear

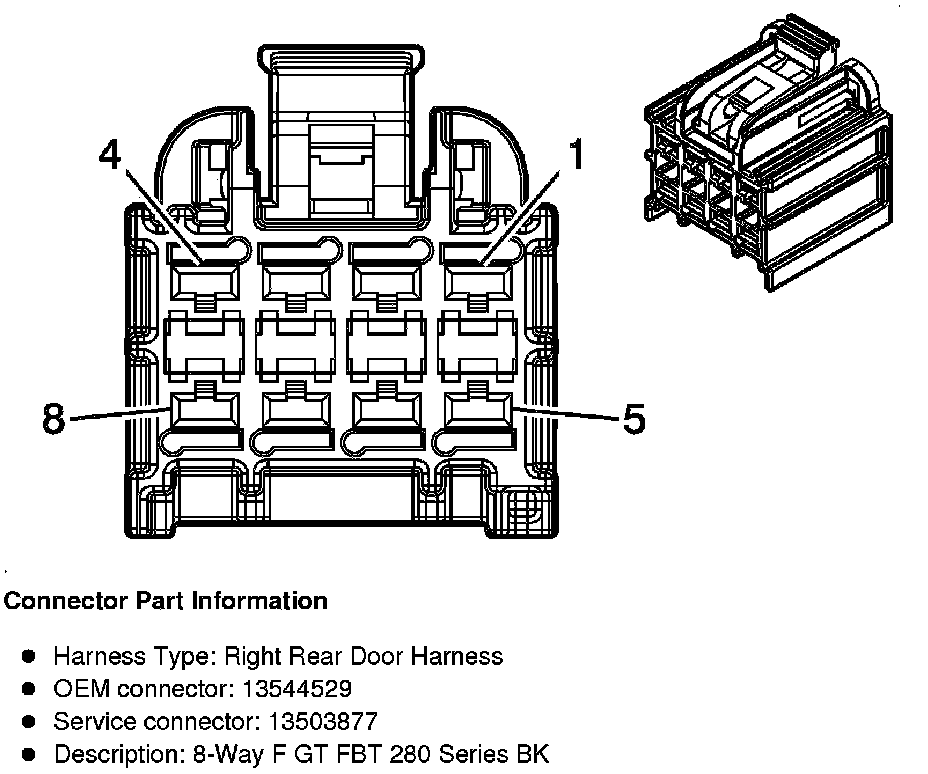

Component Connector End Views

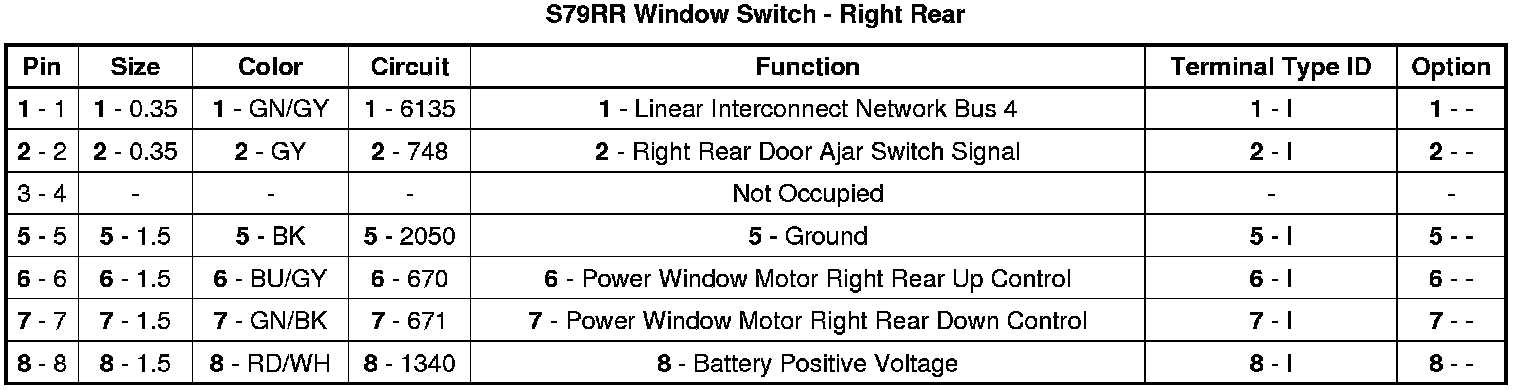

S79RR Window Switch - Right Rear
