Power Door Lock Switch
>>
Door Lock Switch - Driver
Door Lock Switch - Driver

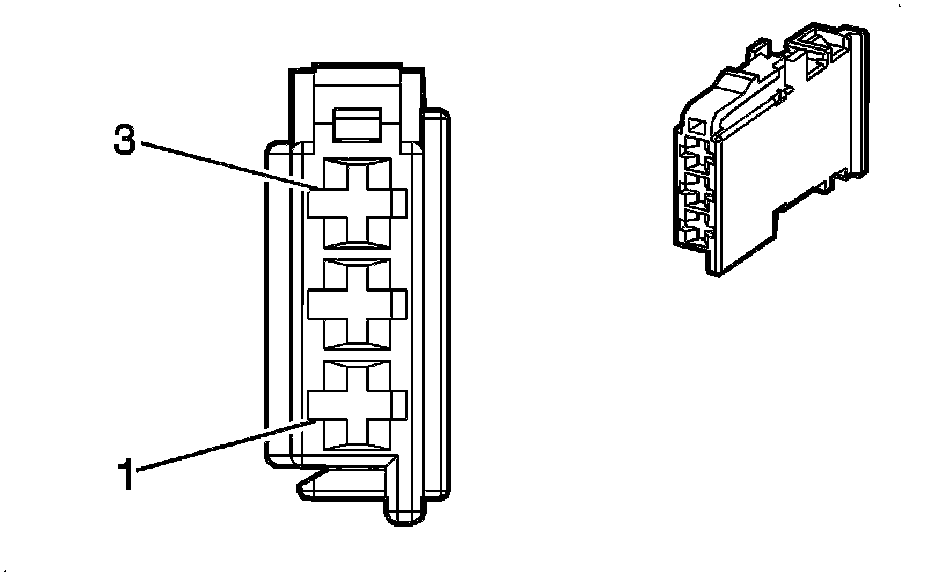

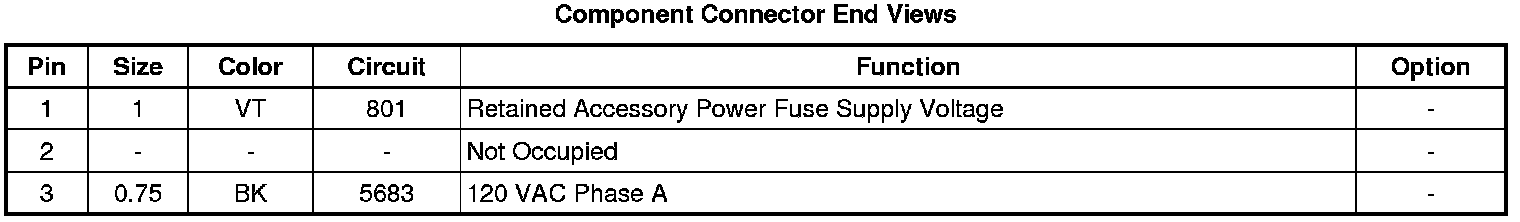

Component Connector End Views

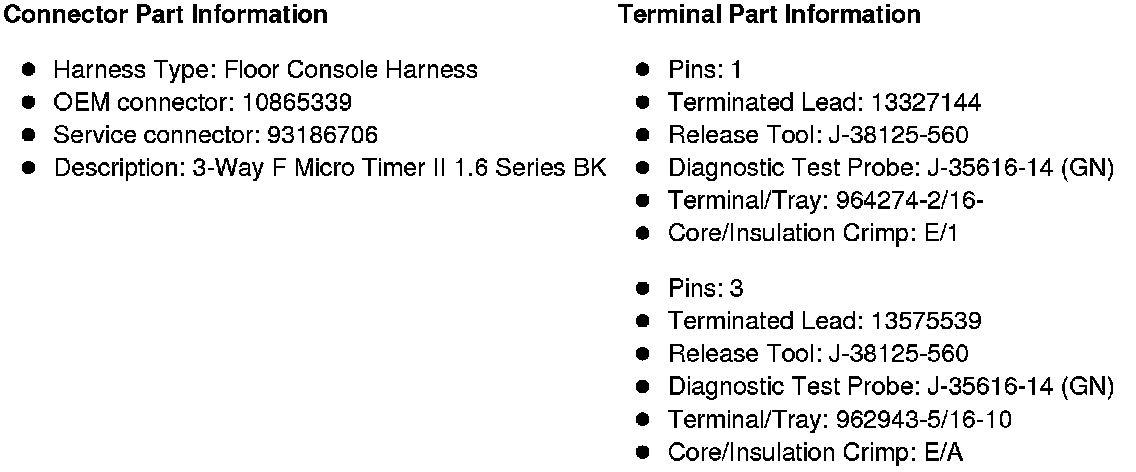

S13D Door Lock Switch - Driver
