Impact Sensor
>>
Front Impact Sensor - Right
Front Impact Sensor - Right
Component Connector End Views

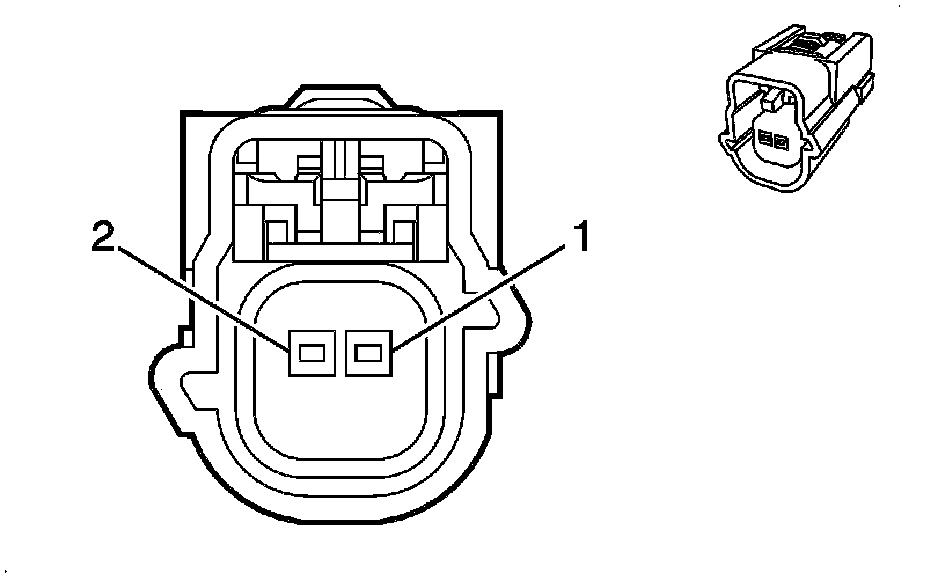

B59R Front Impact Sensor - Right
