Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Lock Solenoid
Ignition Lock Solenoid

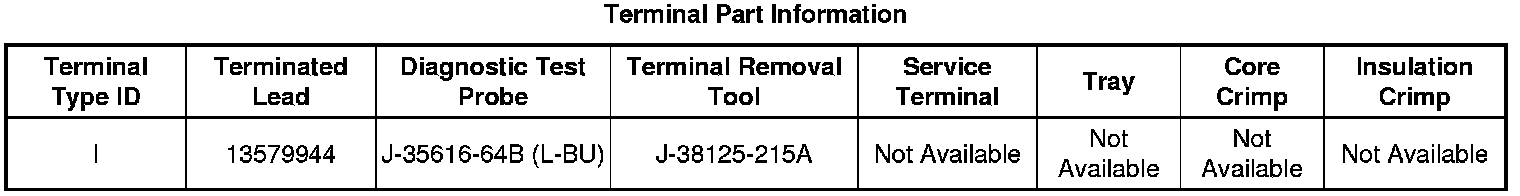

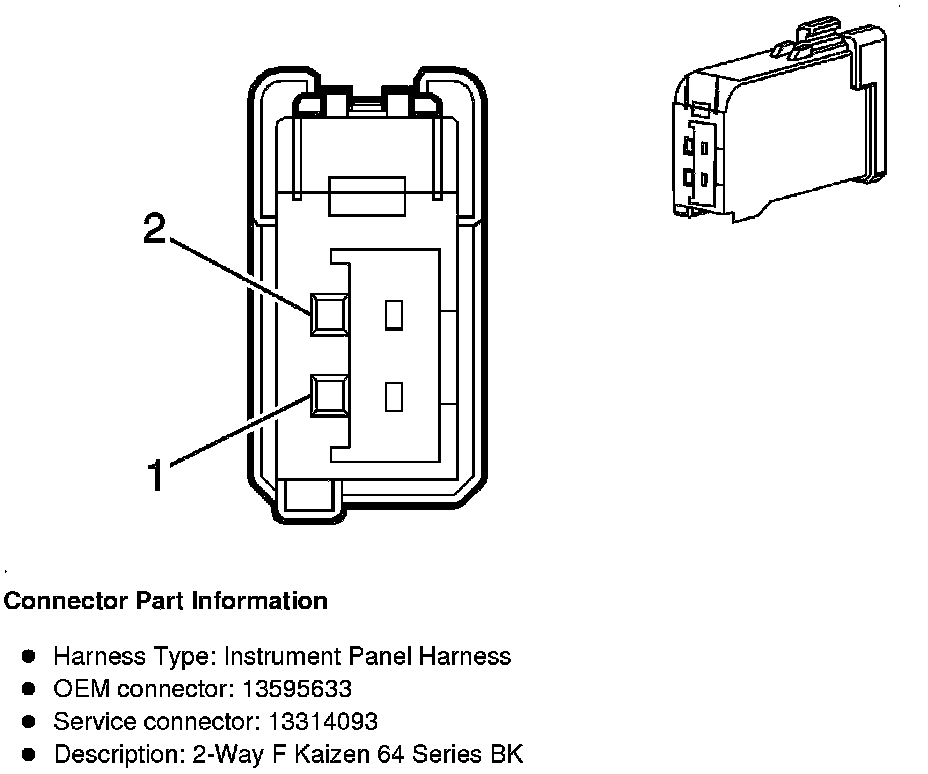

Component Connector End Views

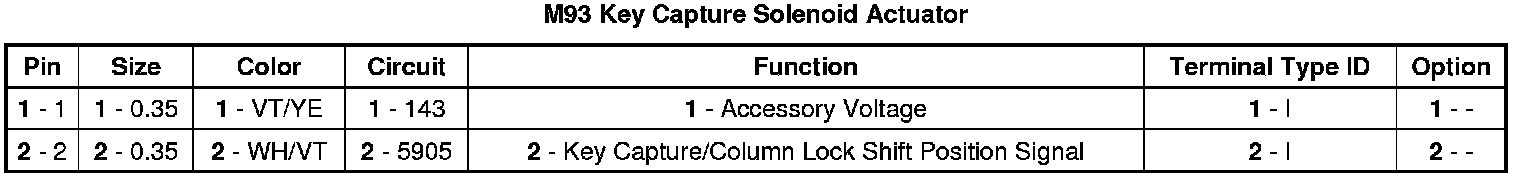

M93
Key
Capture Solenoid Actuator
