Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Tank
Fuel Tank

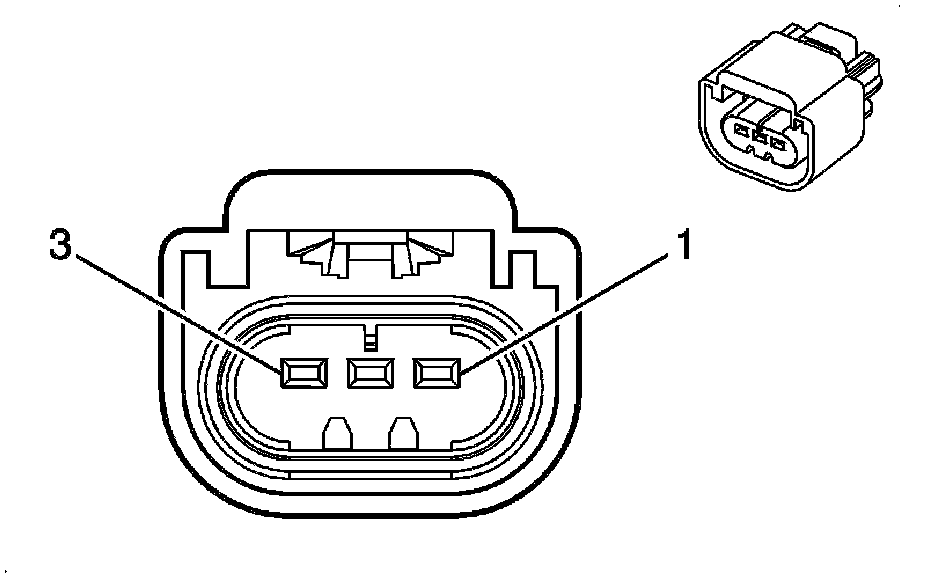

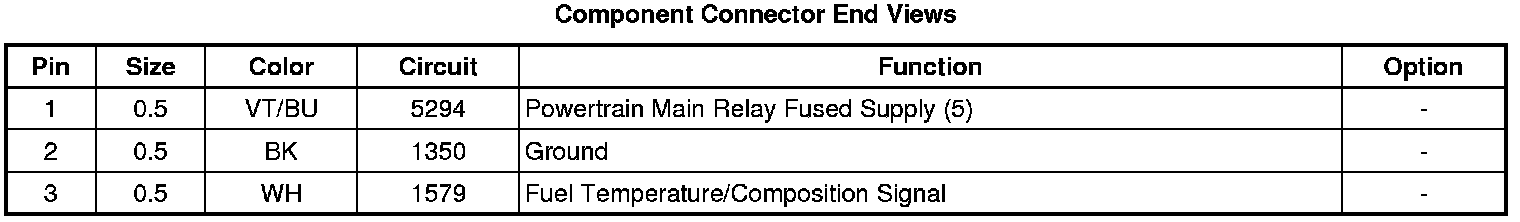

Component Connector End Views

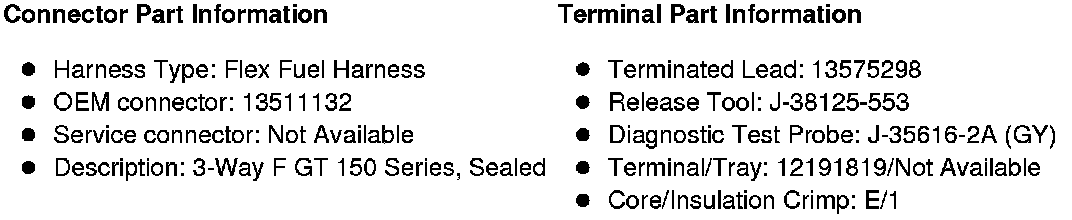

B198 Fuel Composition Sensor (LCV)
