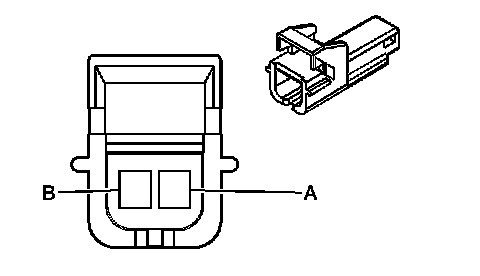

Speaker- Right Front Tweeter

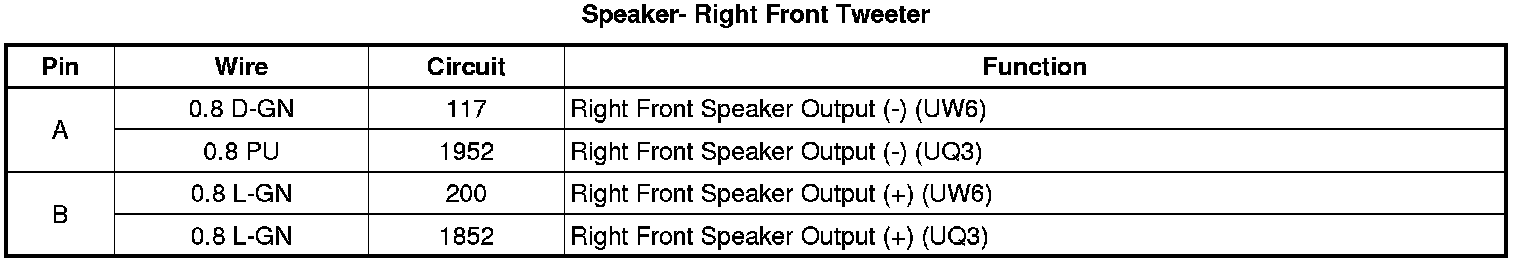

Speaker- Right Front Tweeter

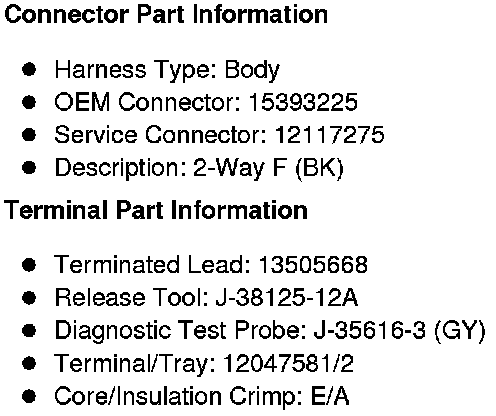

Component Connector End Views
Speaker- Right Front Tweeter
