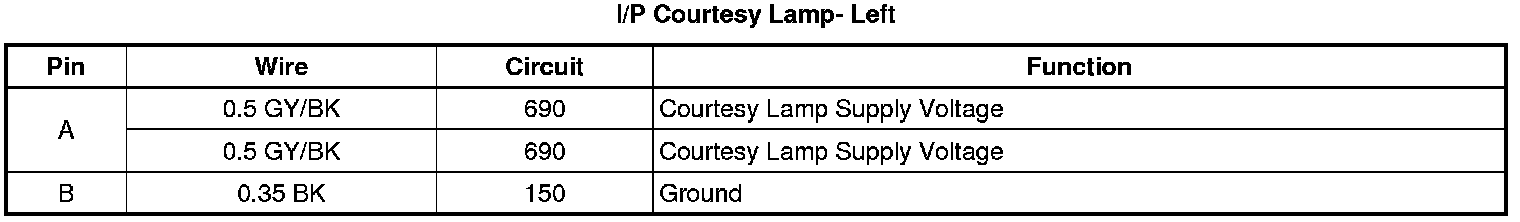

I/P Courtesy Lamp- Left
I/P Courtesy Lamp- Left

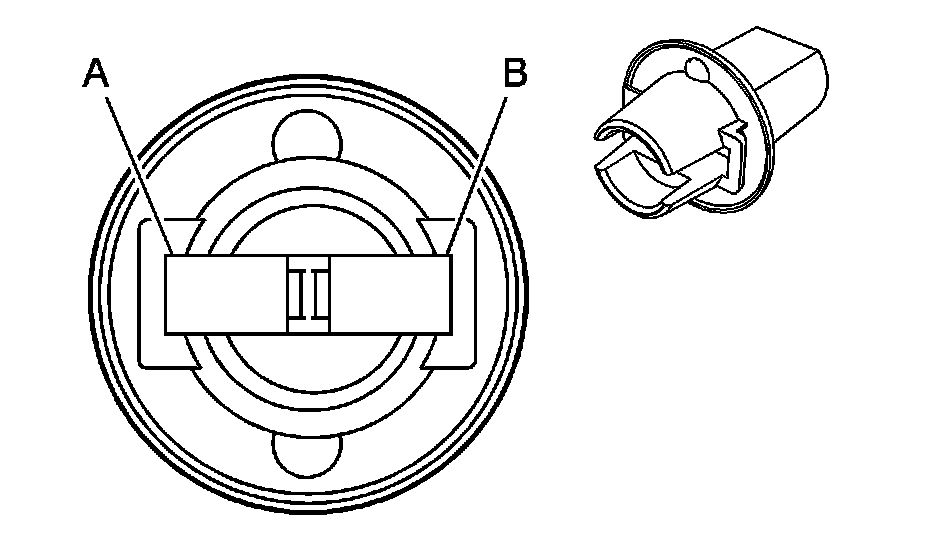

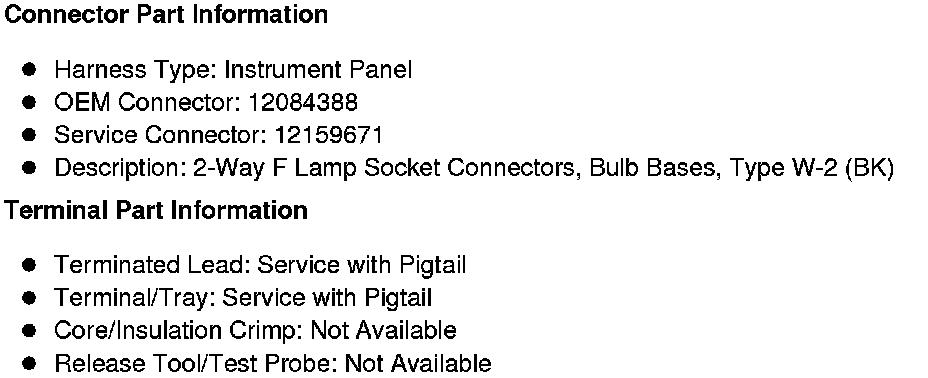

Component Connector End Views
I/P Courtesy Lamp- Left
