Home
>>
Chevrolet
>>
2013
>>
Cruze L4-1.4L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wastegate Solenoid
Wastegate Solenoid

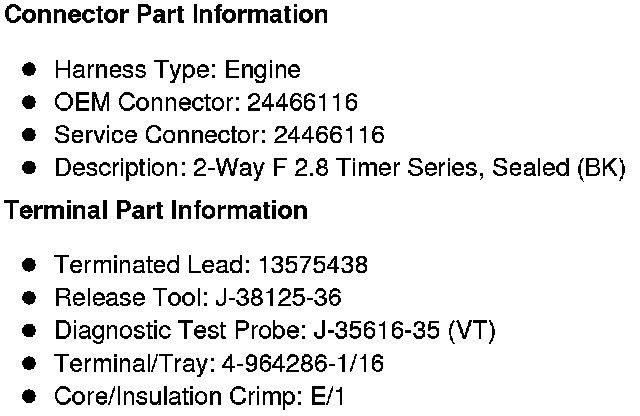

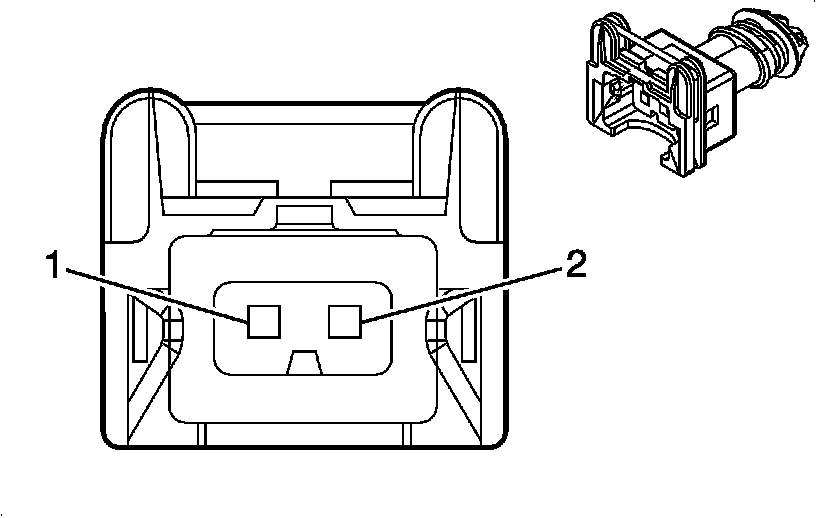

Component Connector End Views

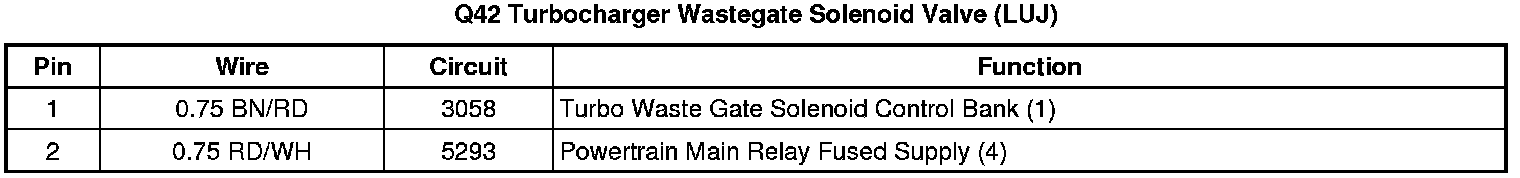

Q42
Turbocharger
Wastegate Solenoid Valve (LUJ)
