Memory Positioning Module
>>
Memory Seat Module - Driver X2 (AAB)
Memory Seat Module - Driver X2 (AAB)

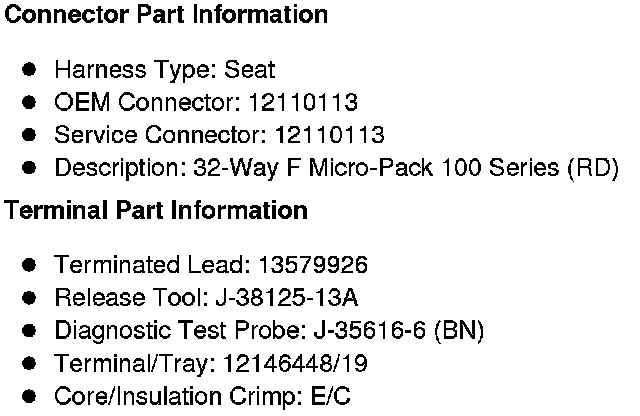

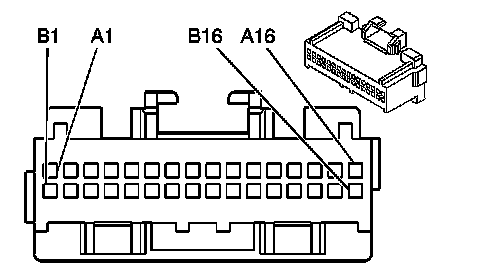

Component Connector End Views

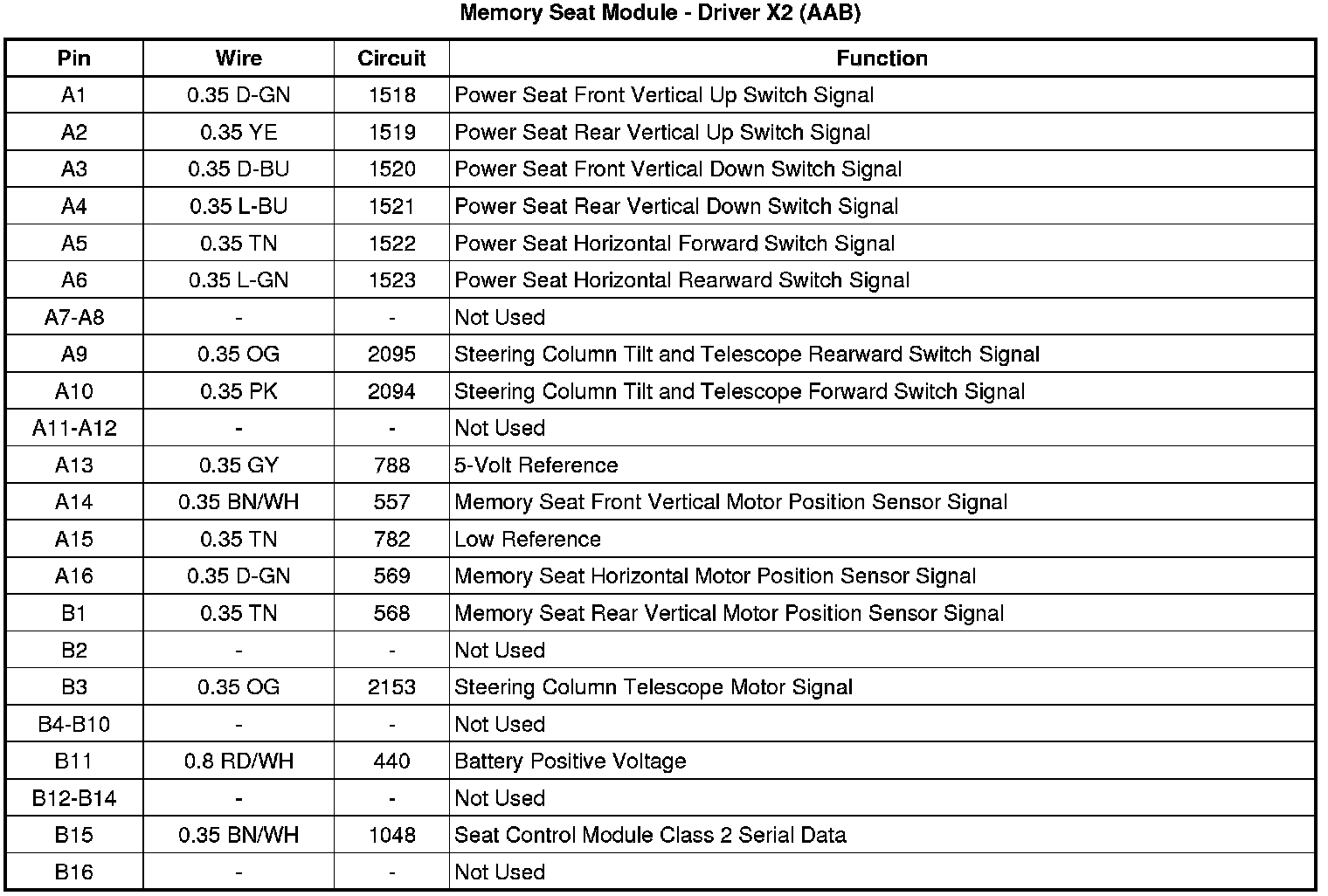

Memory Seat Module - Driver X2 (AAB)
