Home
>>
Chevrolet
>>
2013
>>
Corvette V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna Control Module
>>
Radio Antenna Module - Right
Radio Antenna Module - Right

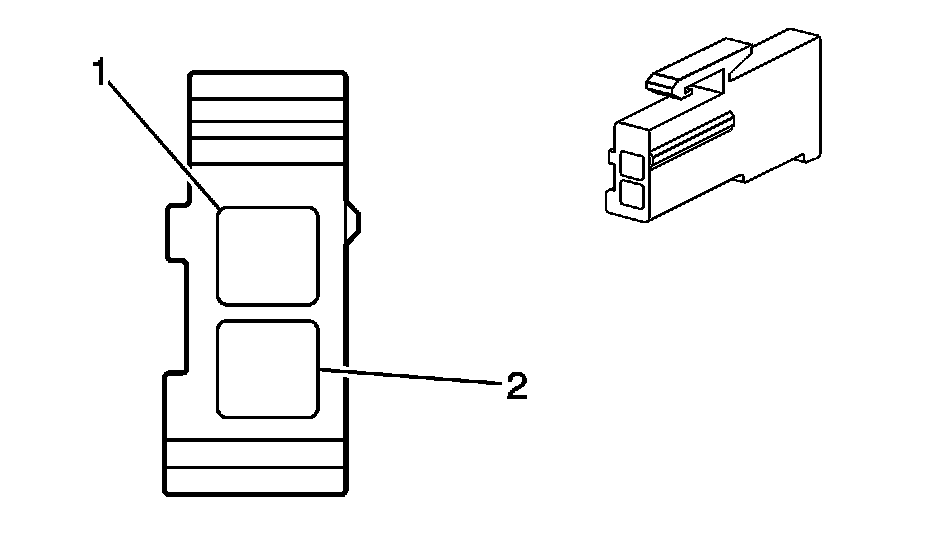

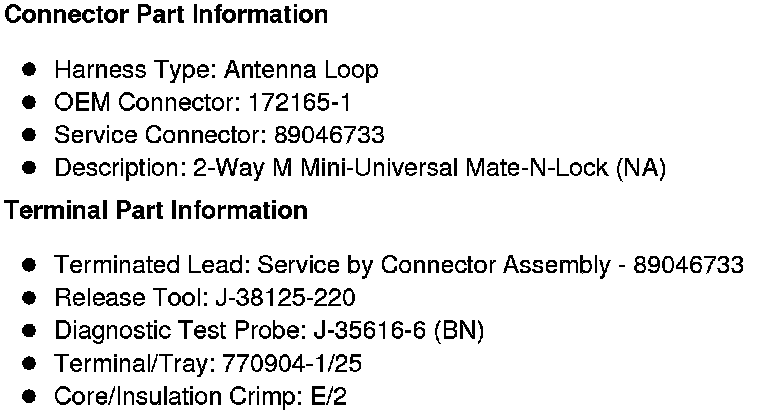

Component Connector End Views

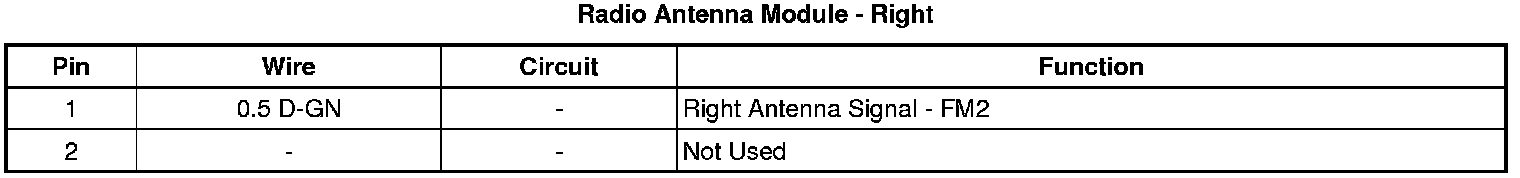

Radio Antenna Module - Right
