Home >> Chevrolet >> 2013 >> Camaro V8-6.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams >> Vehicle Speed Sensor (M10)

Vehicle Speed Sensor (M10)

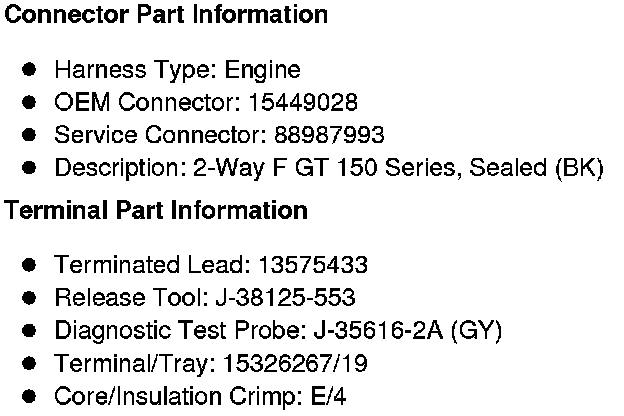

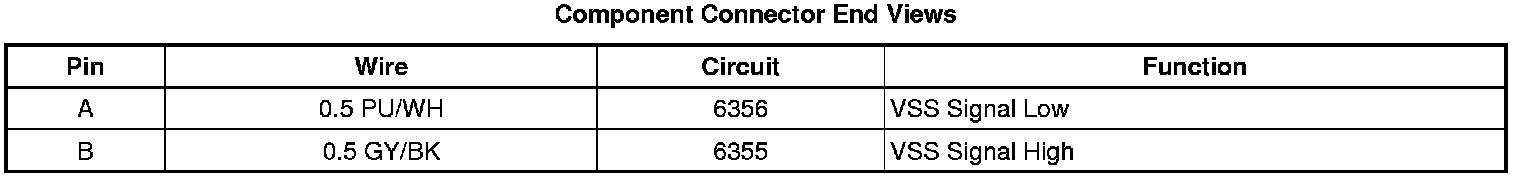

Component Connector End Views

B115 Vehicle Speed Sensor (M10)
