Steering Control Module
>>

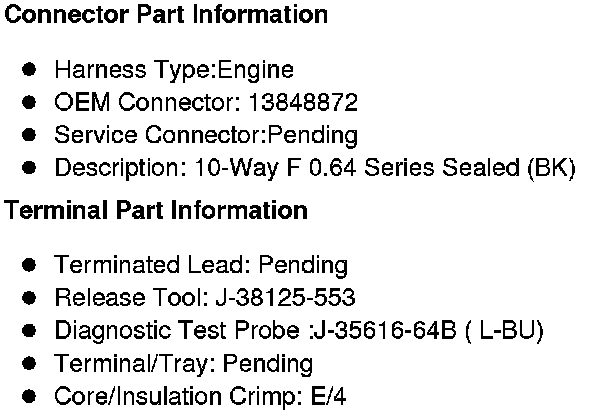

Electric Power Steering Control Module X2
Electric Power Steering Control Module X2

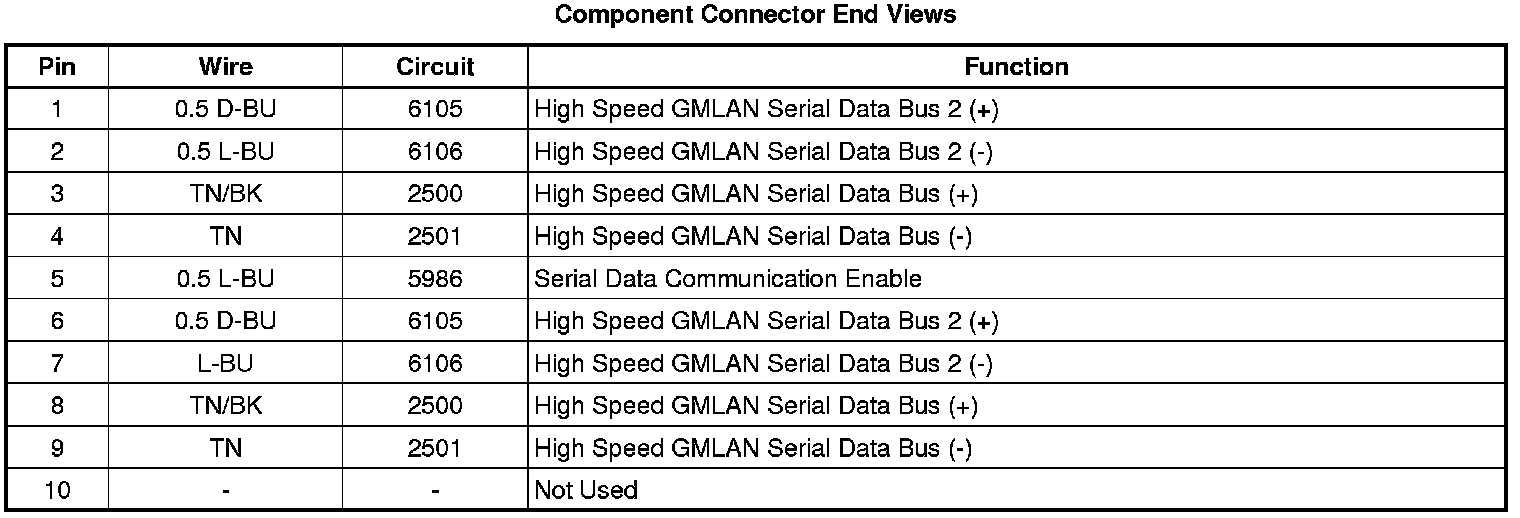

Component Connector End Views
K43 Electric Power Steering
Control Module
X2
