Home >> Chevrolet >> 2013 >> Camaro V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor Position Sensor >> Seat Position Sensor - Driver

Seat Position Sensor - Driver

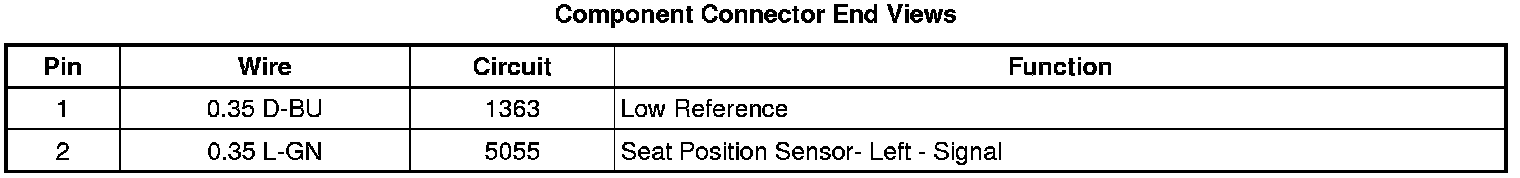

Component Connector End Views

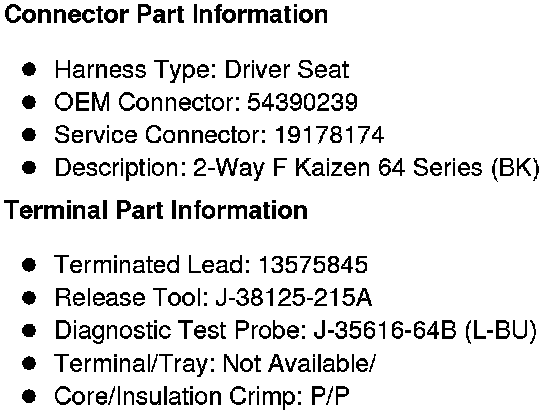

B62D Seat Position Sensor - Driver
