Oil Level Sensor
Oil Level Sensor

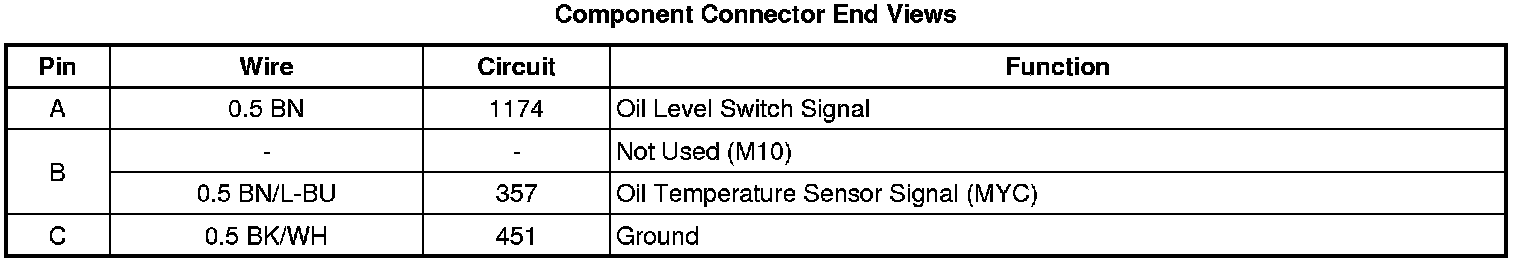

Component Connector End Views

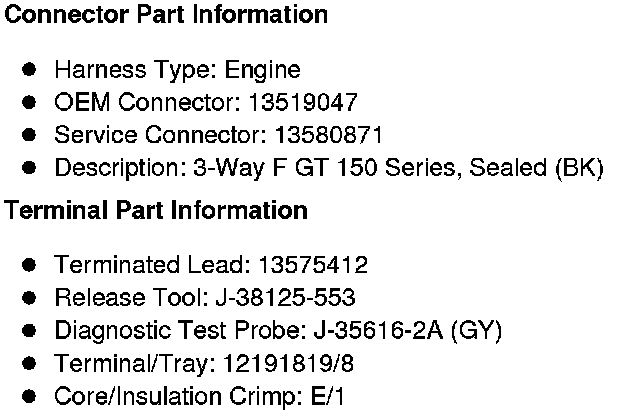

B35C Engine Oil Level and Temperature Sensor (L99, LS3 or LSA)
