Impact Sensor
>>
Side Impact Sensor - Right
Side Impact Sensor - Right

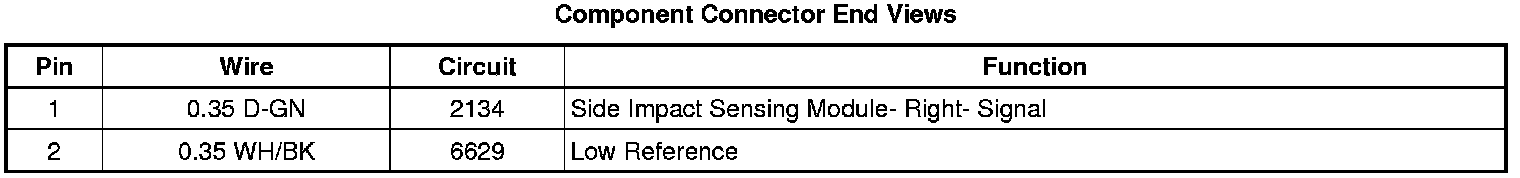

Component Connector End Views

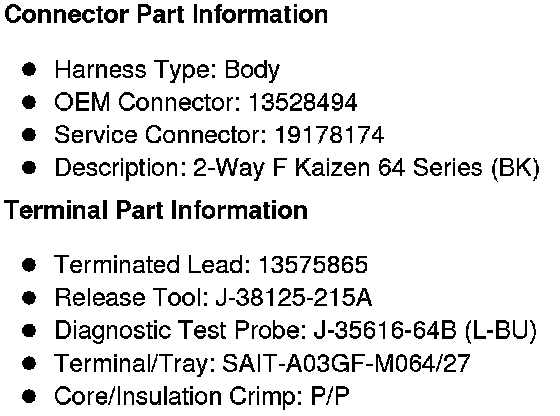

B63R Side Impact Sensor - Right
