Seat Position Sensor - Passenger
Seat Position Sensor - Passenger

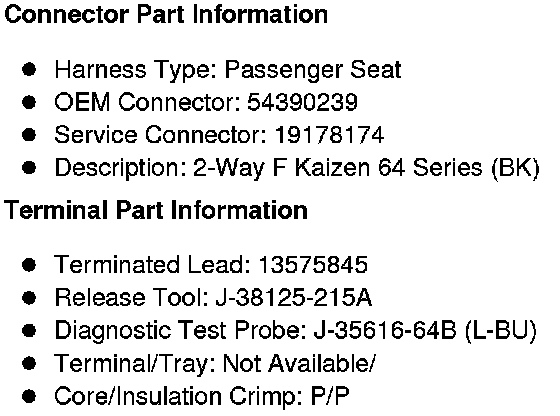

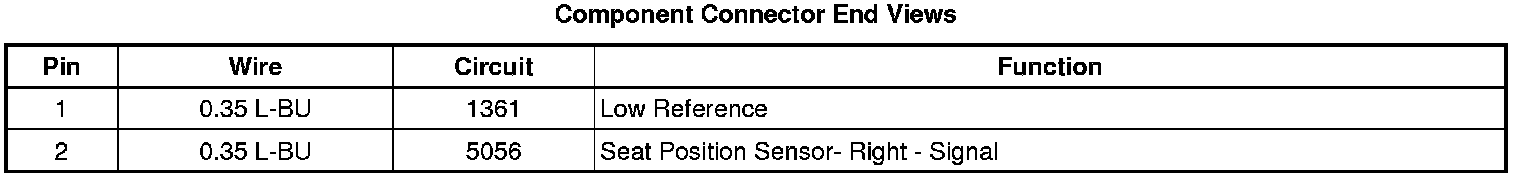

Component Connector End Views
B62P
Seat Position Sensor
- Passenger
