Home >> Chevrolet >> 2012 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 45. Center Support Assembly Disassemble

45. Center Support Assembly Disassemble

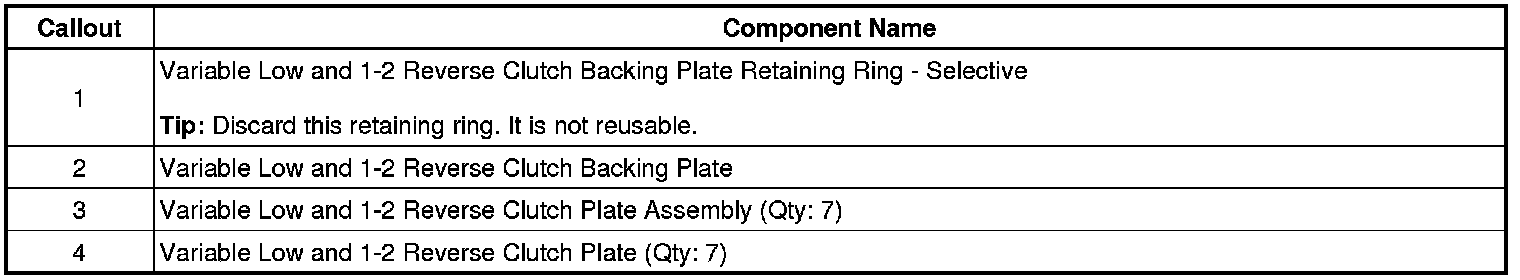

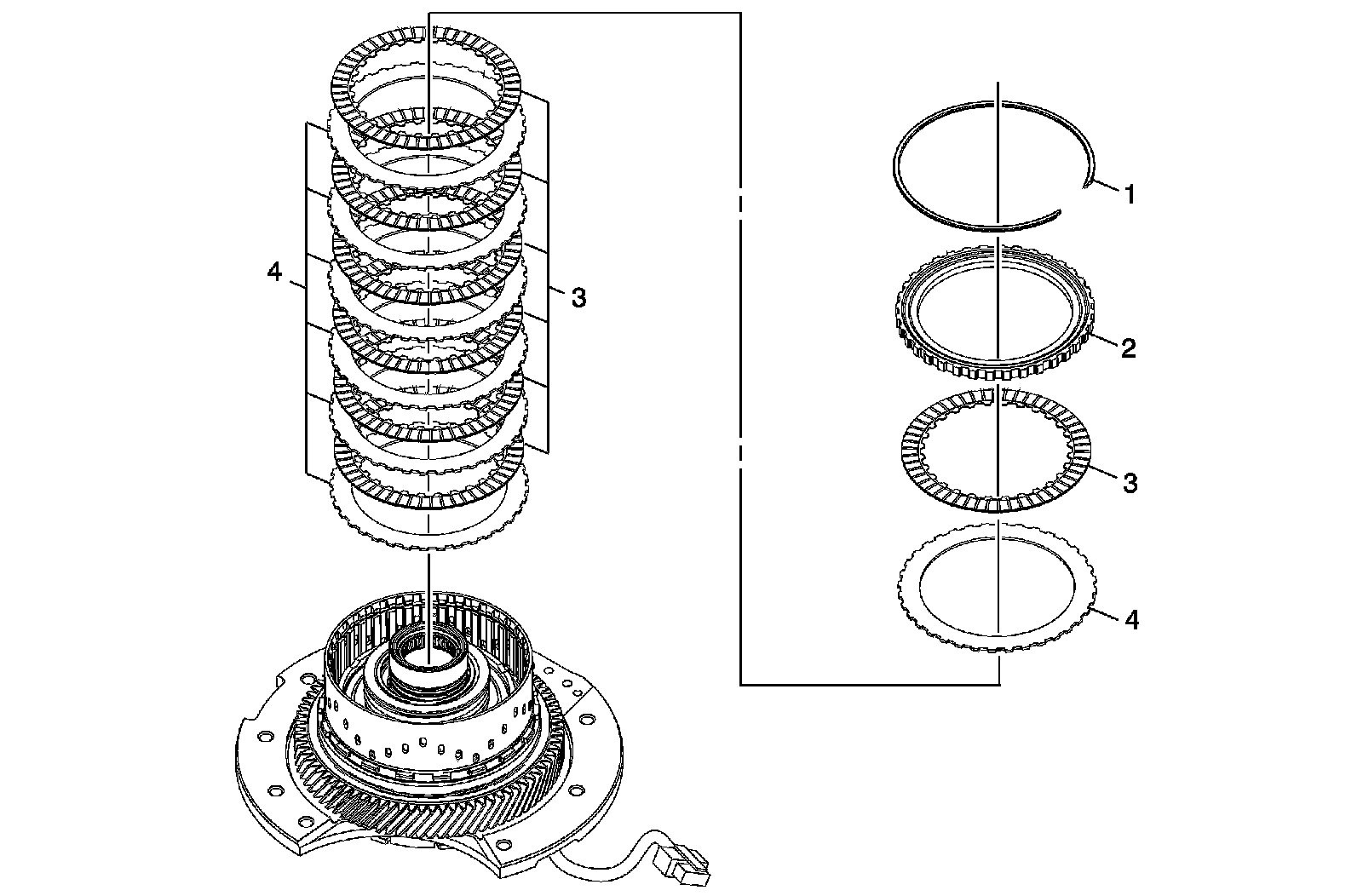

Center Support Assembly Disassemble
