Auxiliary Data Connector
Auxiliary Data Connector
Component Connector End Views

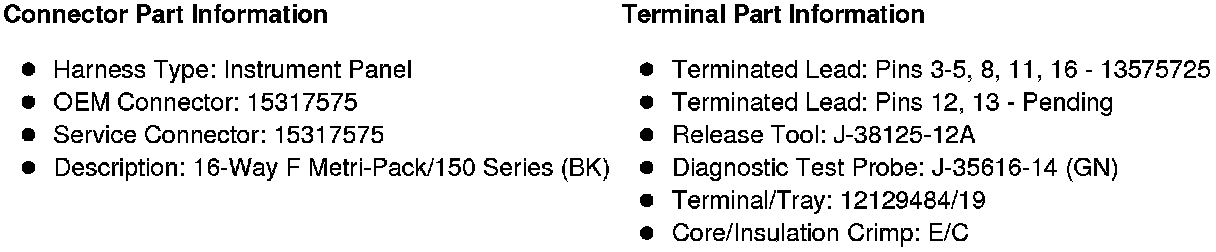

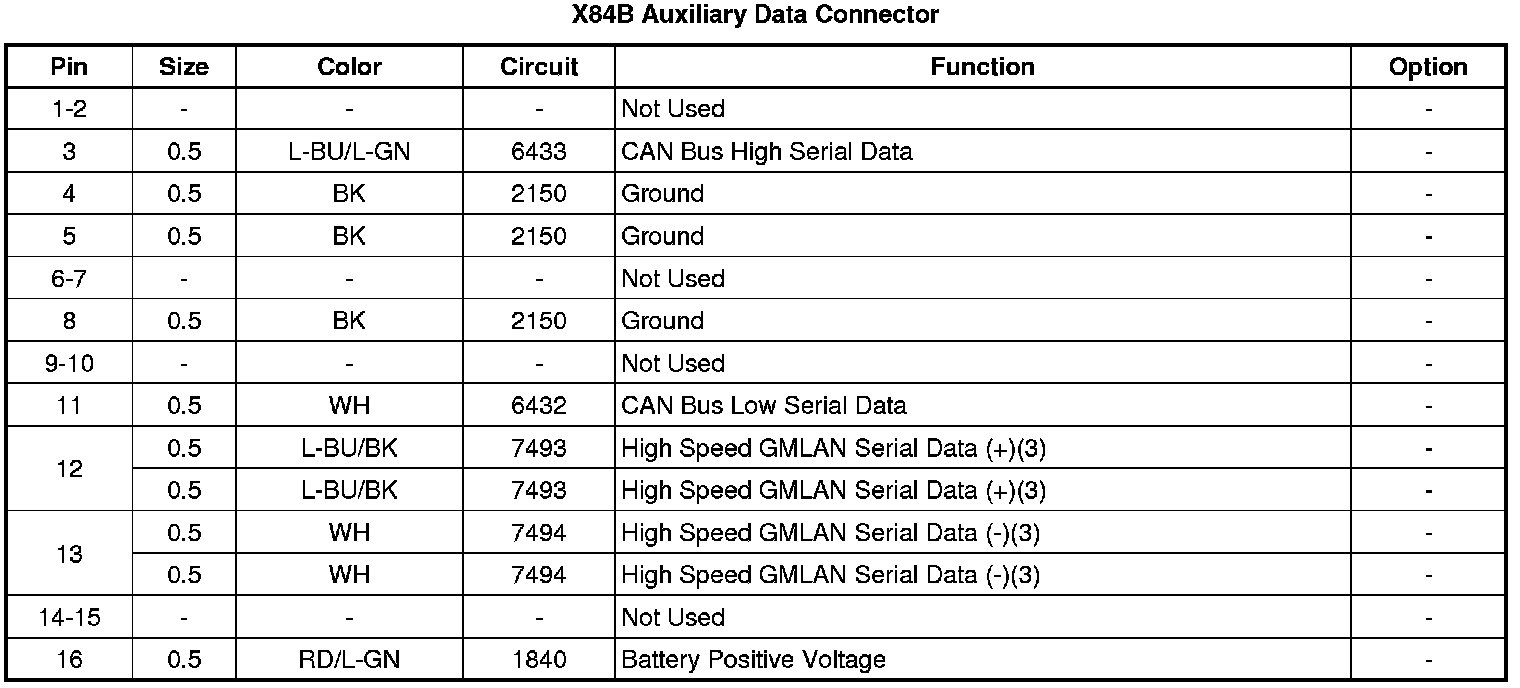

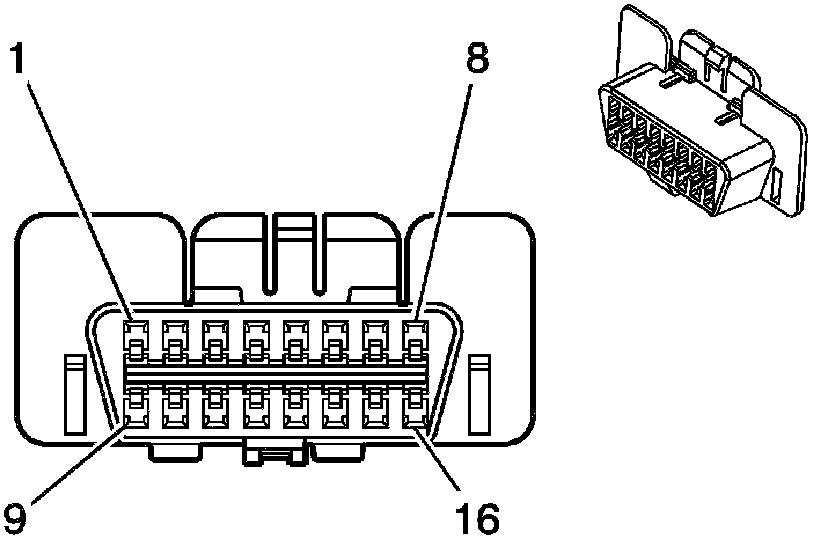

X84B Auxiliary Data Connector
