Drive Motor Temperature Sensor
>>
Diagrams
>>
Drive Motor 1 Temperature Sensor
Drive Motor 1 Temperature Sensor

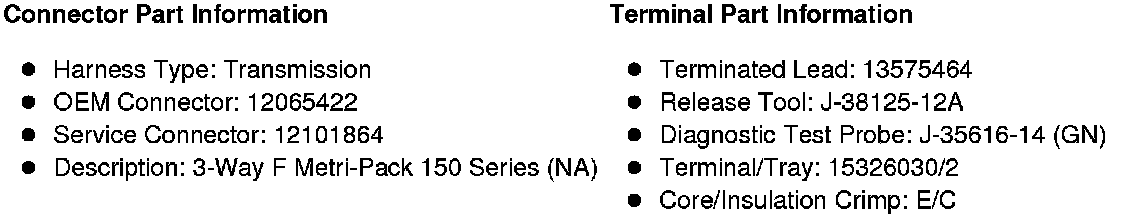

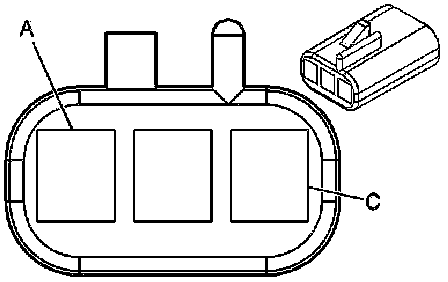

Component Connector End Views

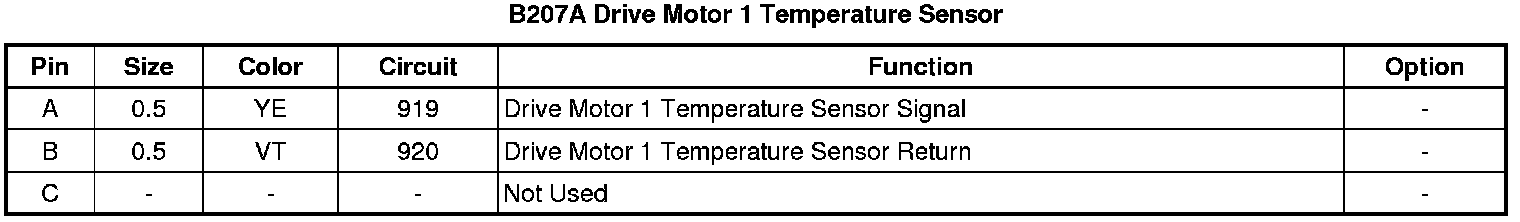

B207A Drive Motor 1 Temperature Sensor
