Home
>>
Chevrolet
>>
2012
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
System Diagram
>>

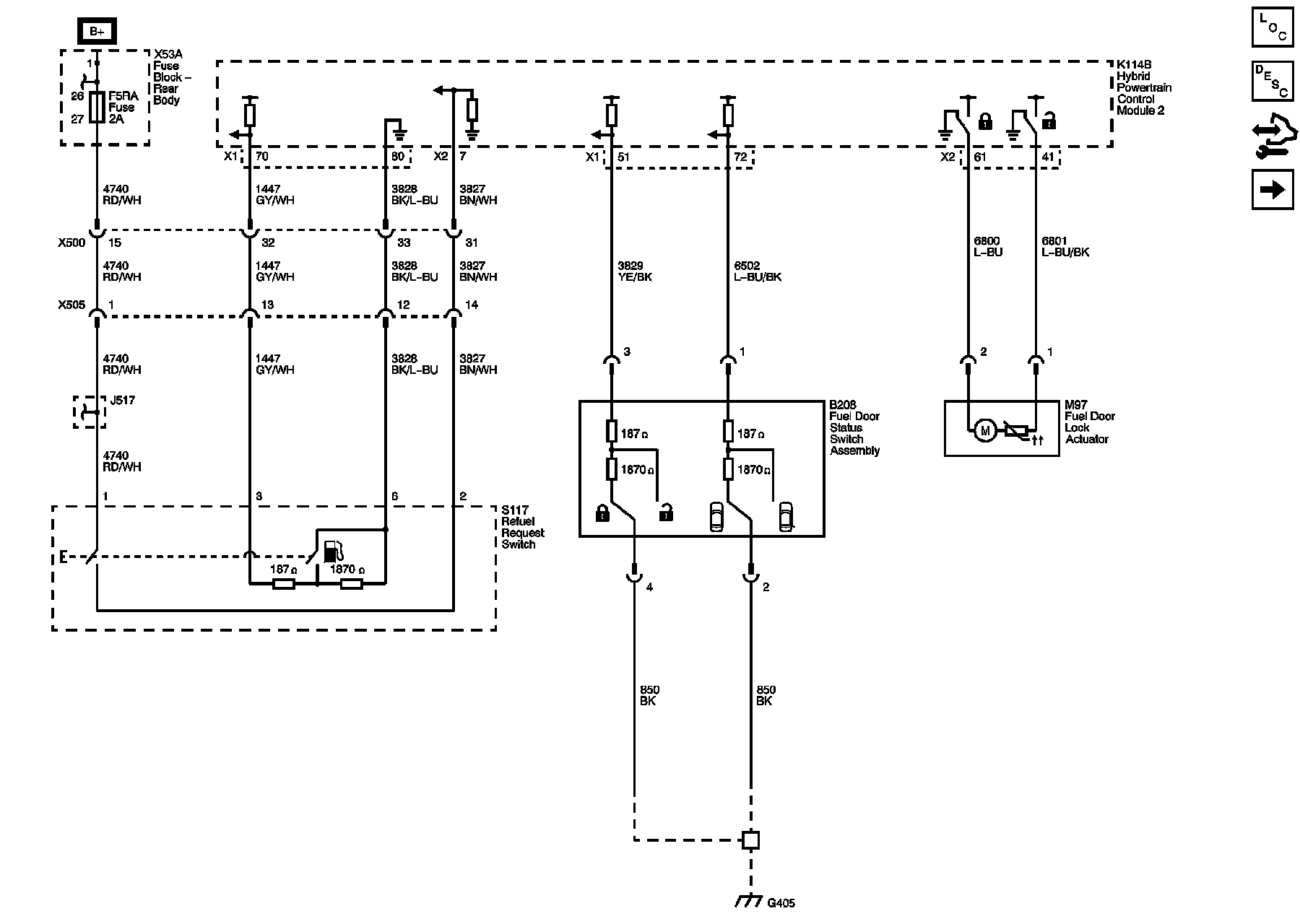

Release Systems Schematics (Release)
Release Systems Schematics (Release)
Release Systems Schematics (Release)
Fuel Door
