Transmission Internal Mode Switch X2
Transmission Internal Mode Switch X2
Component Connector End Views

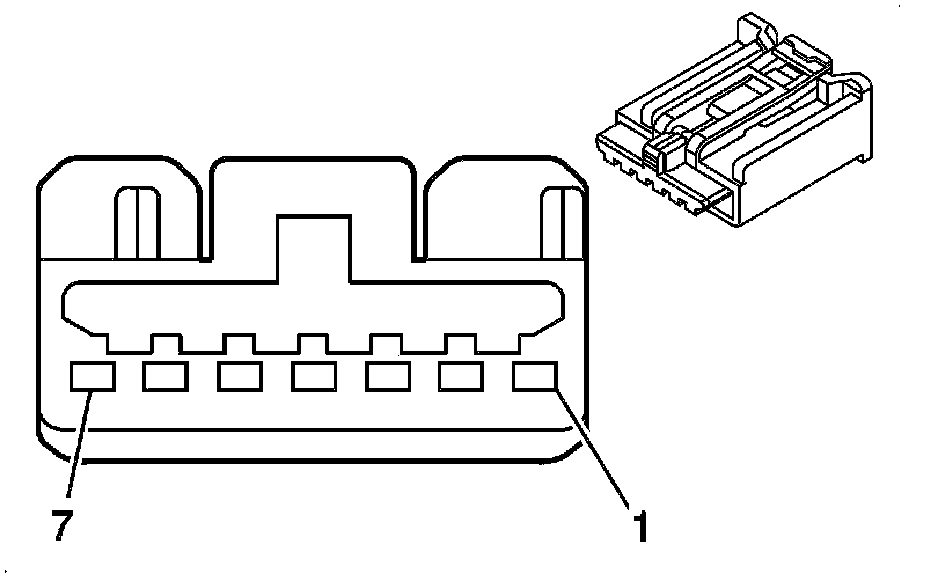

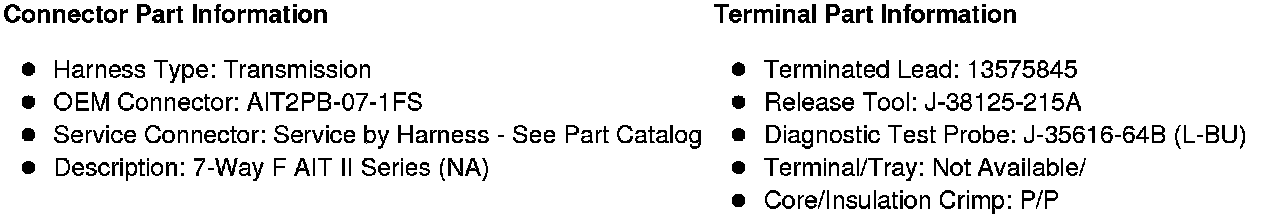

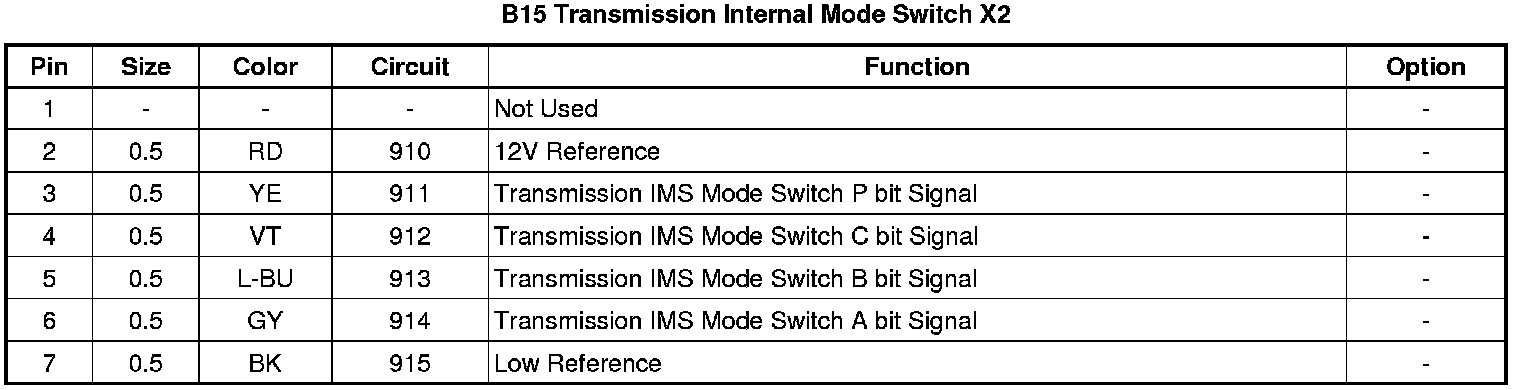

B15 Transmission Internal Mode Switch X2
