Refuel Request Switch
Refuel Request Switch
Component Connector End Views

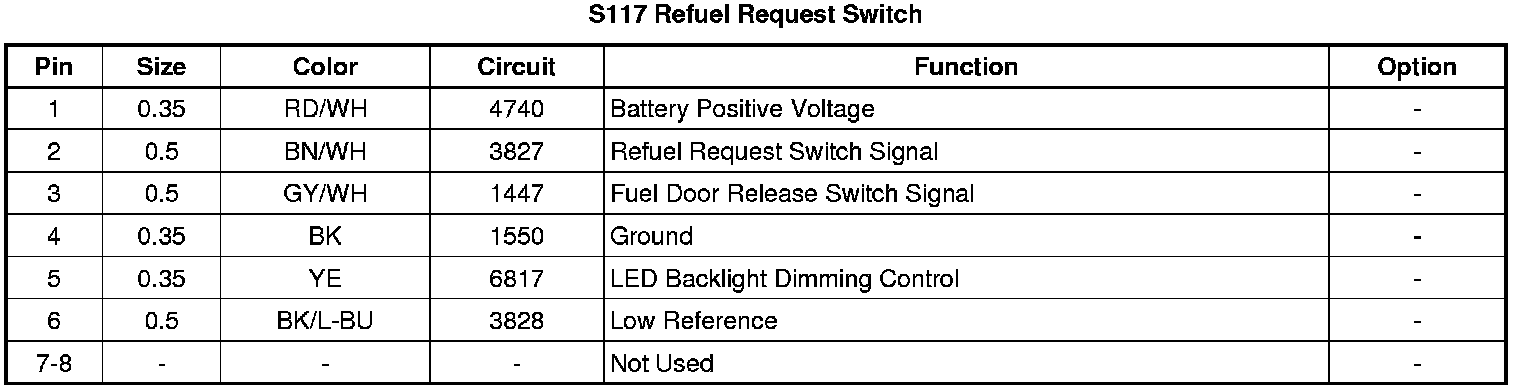

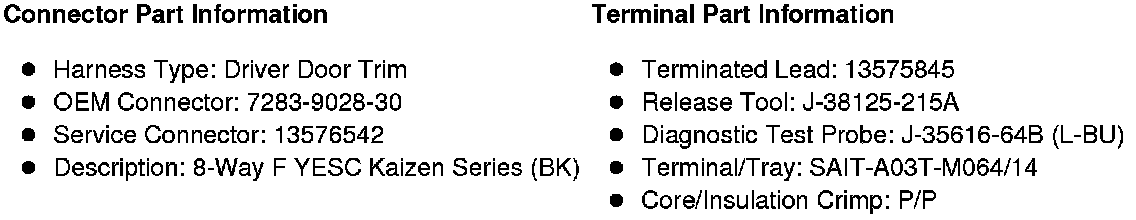

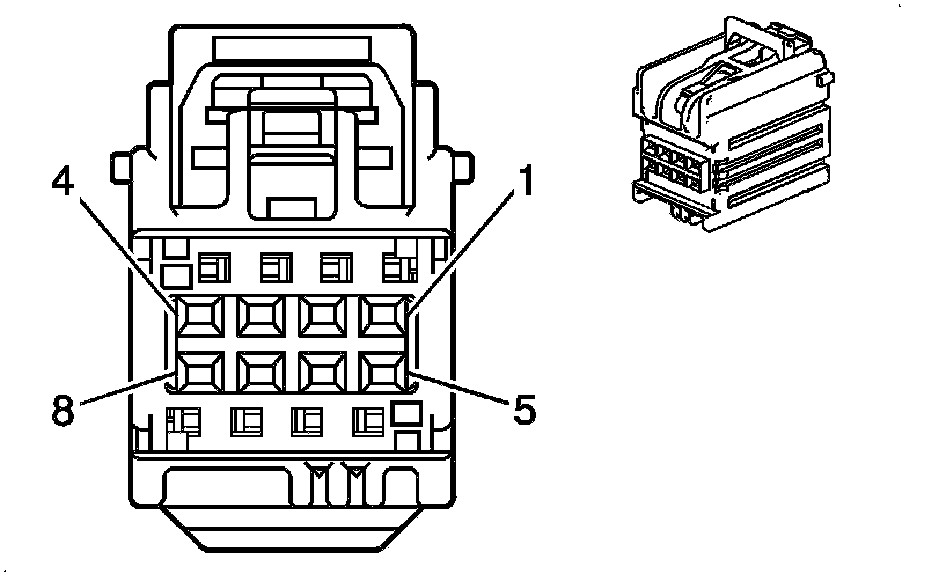

S117 Refuel Request Switch
