Hybrid Battery Contactor Assembly
Hybrid Battery Contactor Assembly
Component Connector End Views

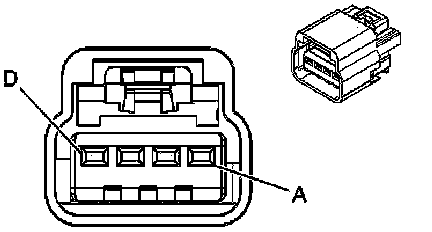

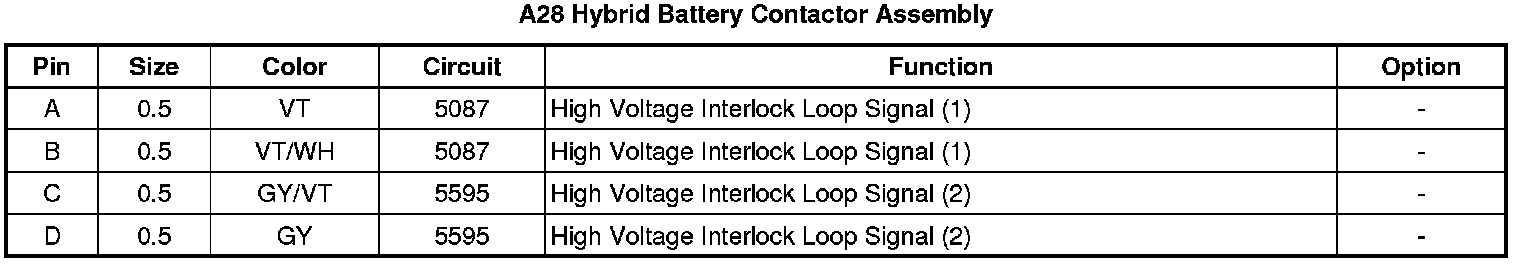

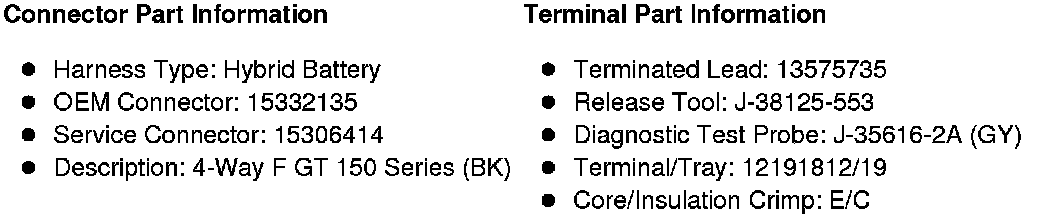

A28 Hybrid Battery Contactor Assembly
