Coolant Heater Temperature Sensor
Coolant Heater Temperature Sensor

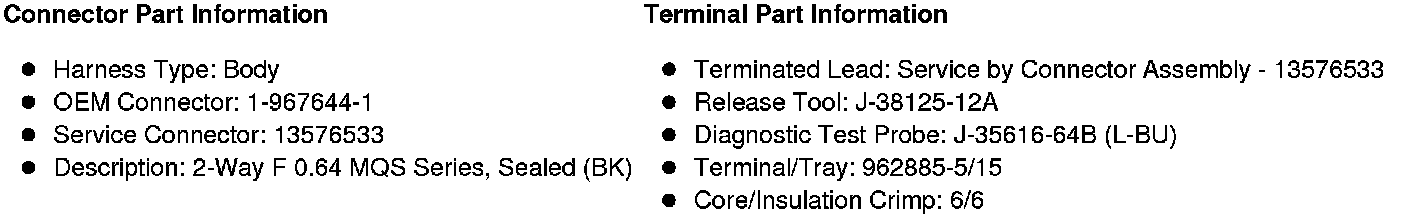

Component Connector End Views

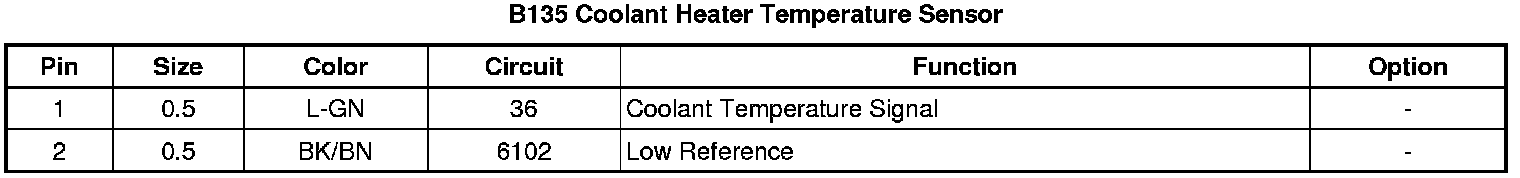

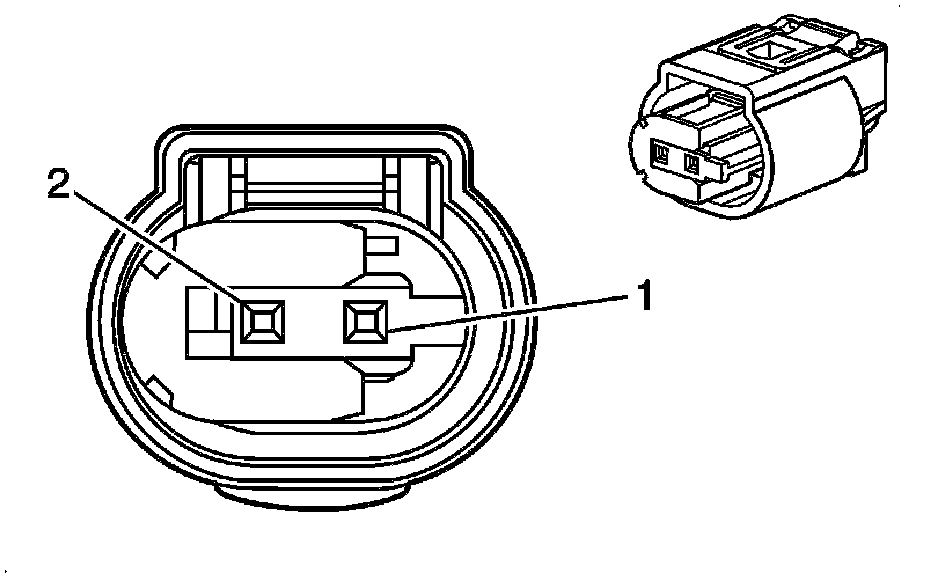

B135 Coolant Heater Temperature Sensor
