Collision Avoidance Sensor
>>
Front Object Sensor - Right Outer
Front Object Sensor - Right Outer

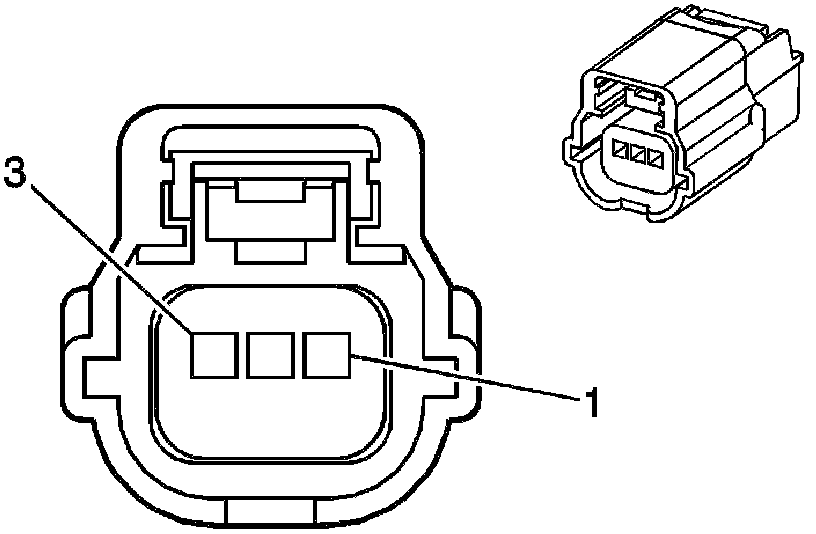

Component Connector End Views

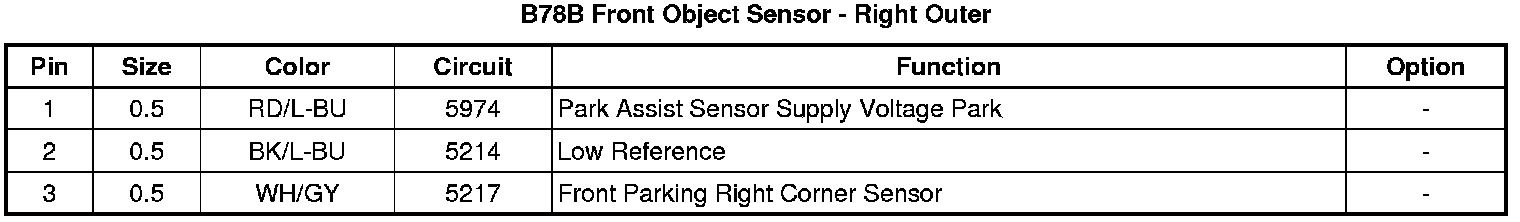

B78B Front Object Sensor - Right Outer
