Auxiliary Cabin Heater Control Valve
Auxiliary Cabin Heater Control Valve

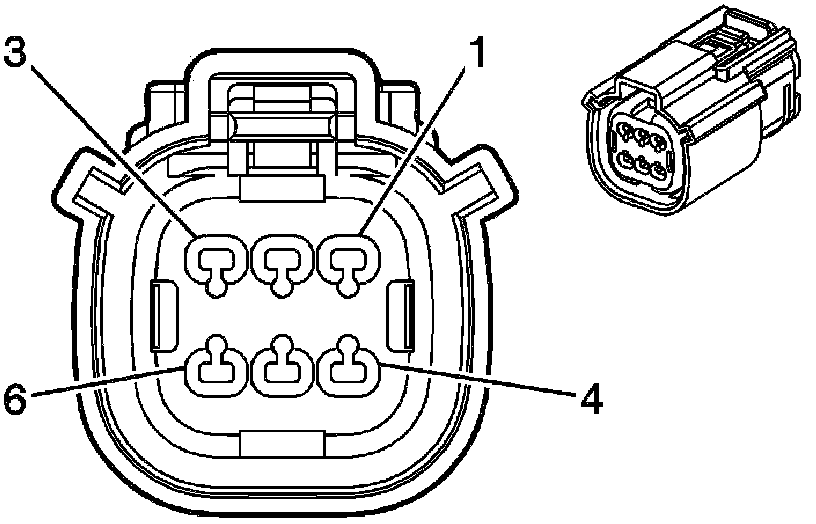

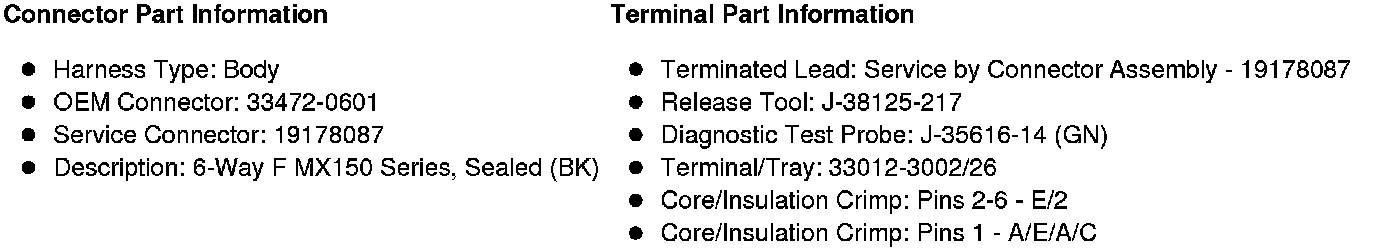

Component Connector End Views

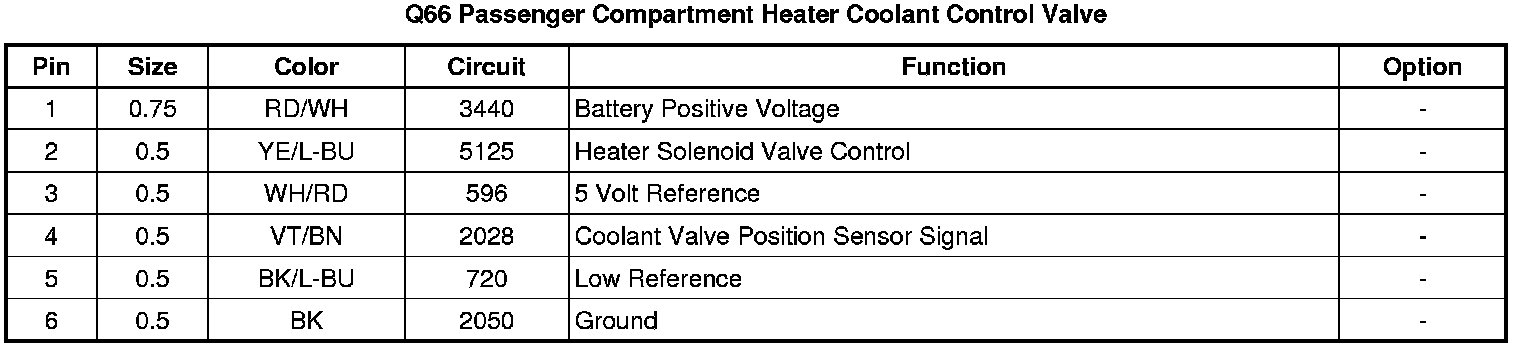

Q66 Passenger Compartment Heater Coolant Control Valve
