Trunk / Liftgate Latch
>>
Rear Compartment Lid Latch (Notchback)
Rear Compartment Lid Latch (Notchback)

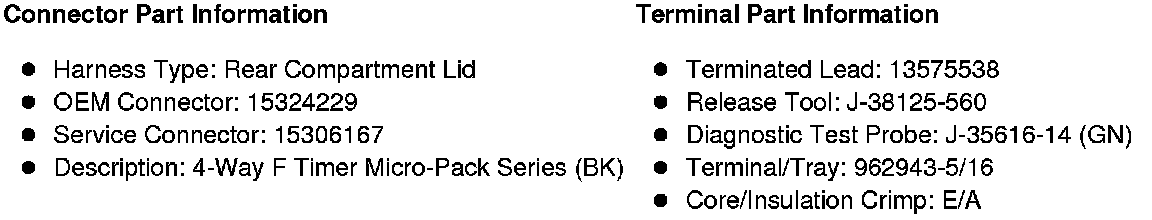

Component Connector End Views

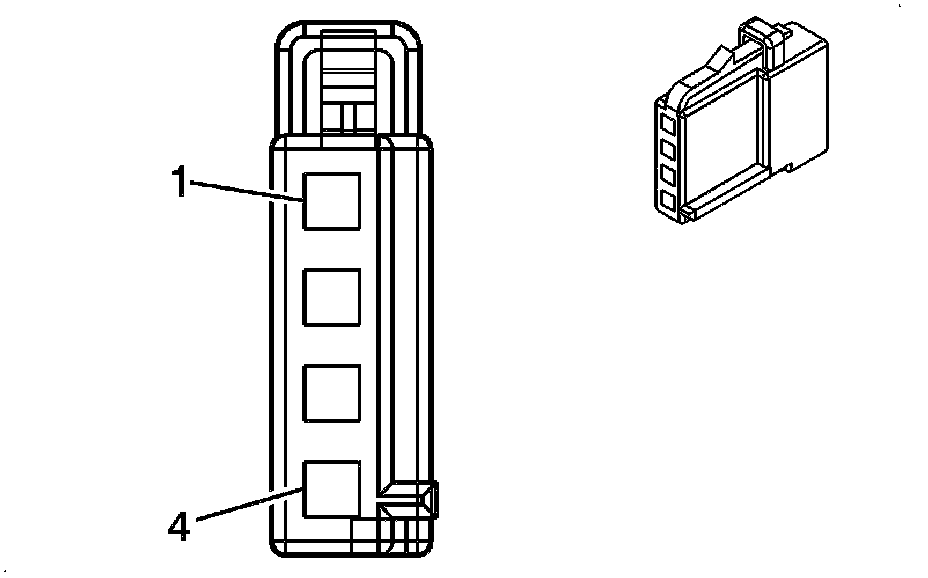

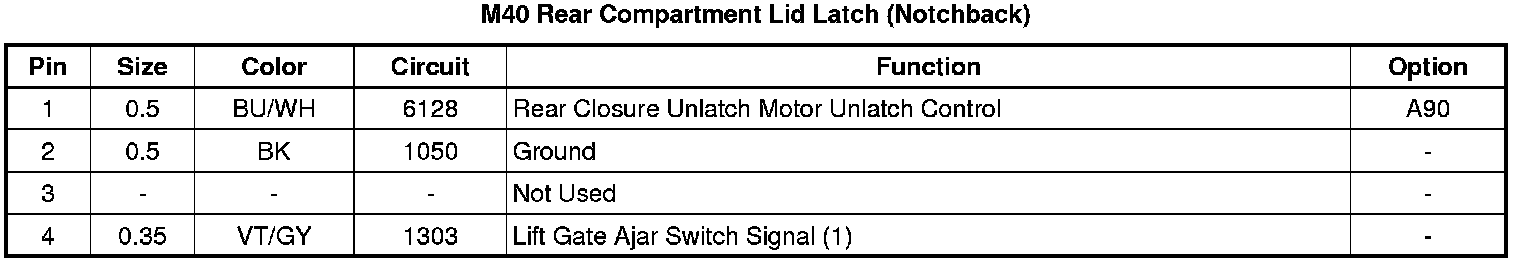

M40 Rear Compartment Lid Latch (Notchback)
