Chevrolet
>>
2012
>>
Sonic L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Latch
>>
Liftgate Latch (Hatchback)
Liftgate Latch (Hatchback)
Component Connector End Views

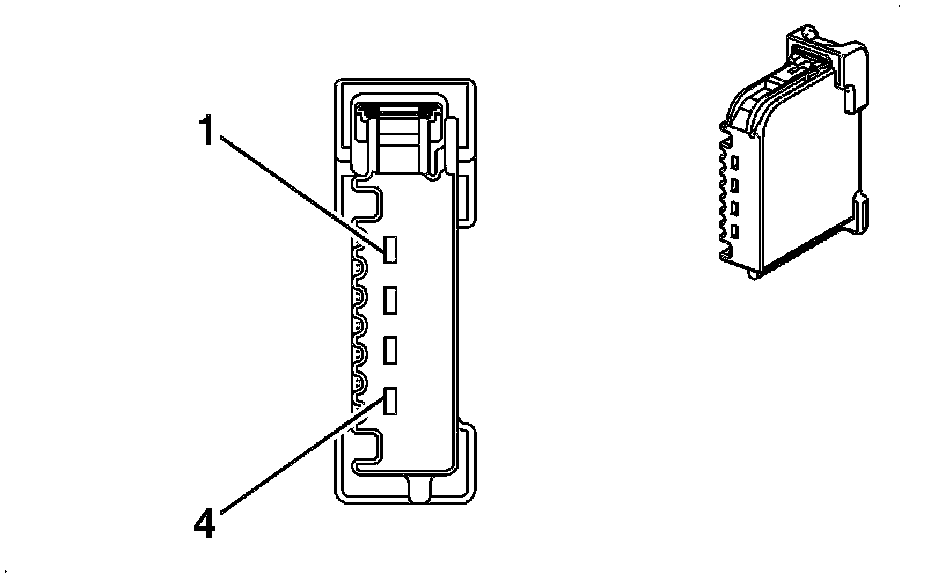

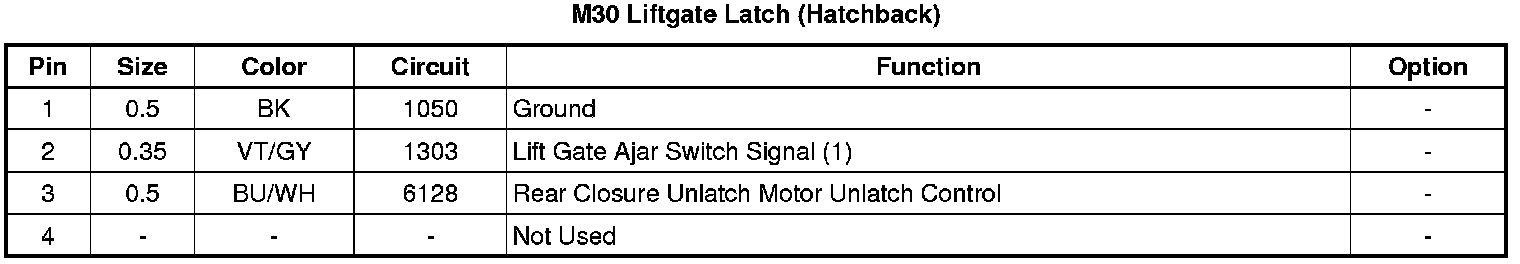

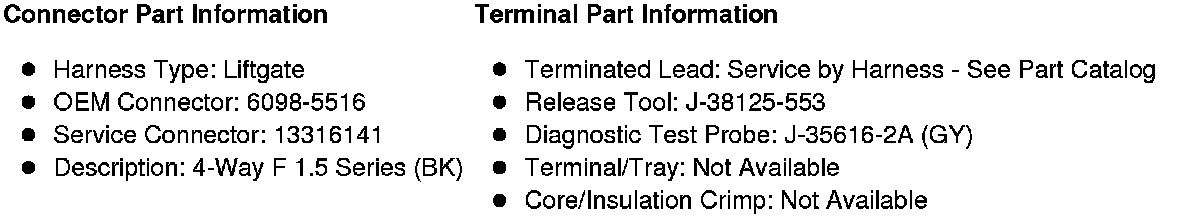

M30 Liftgate Latch (Hatchback)
