Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2012
>>
Malibu V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
Communications Control Module

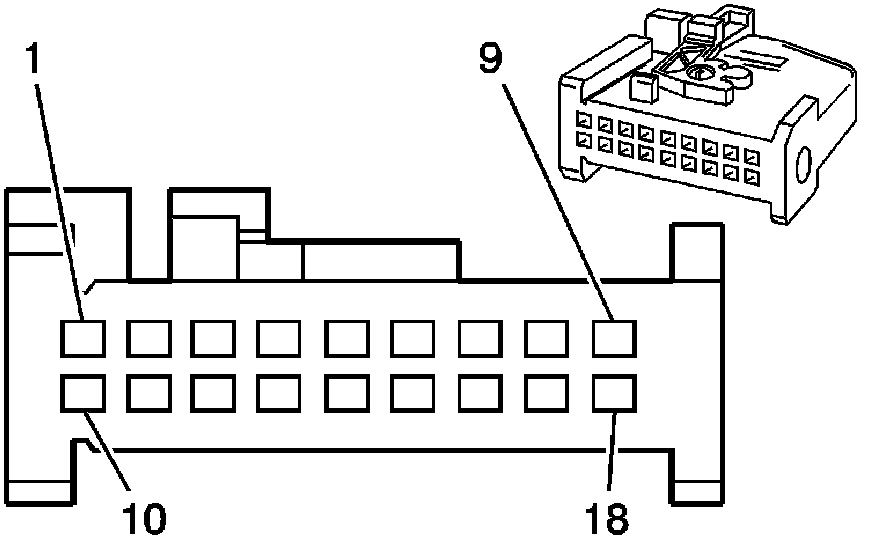

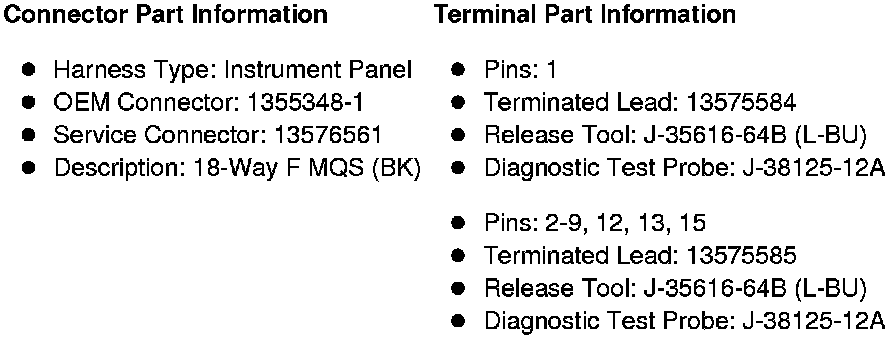

Component Connector End Views

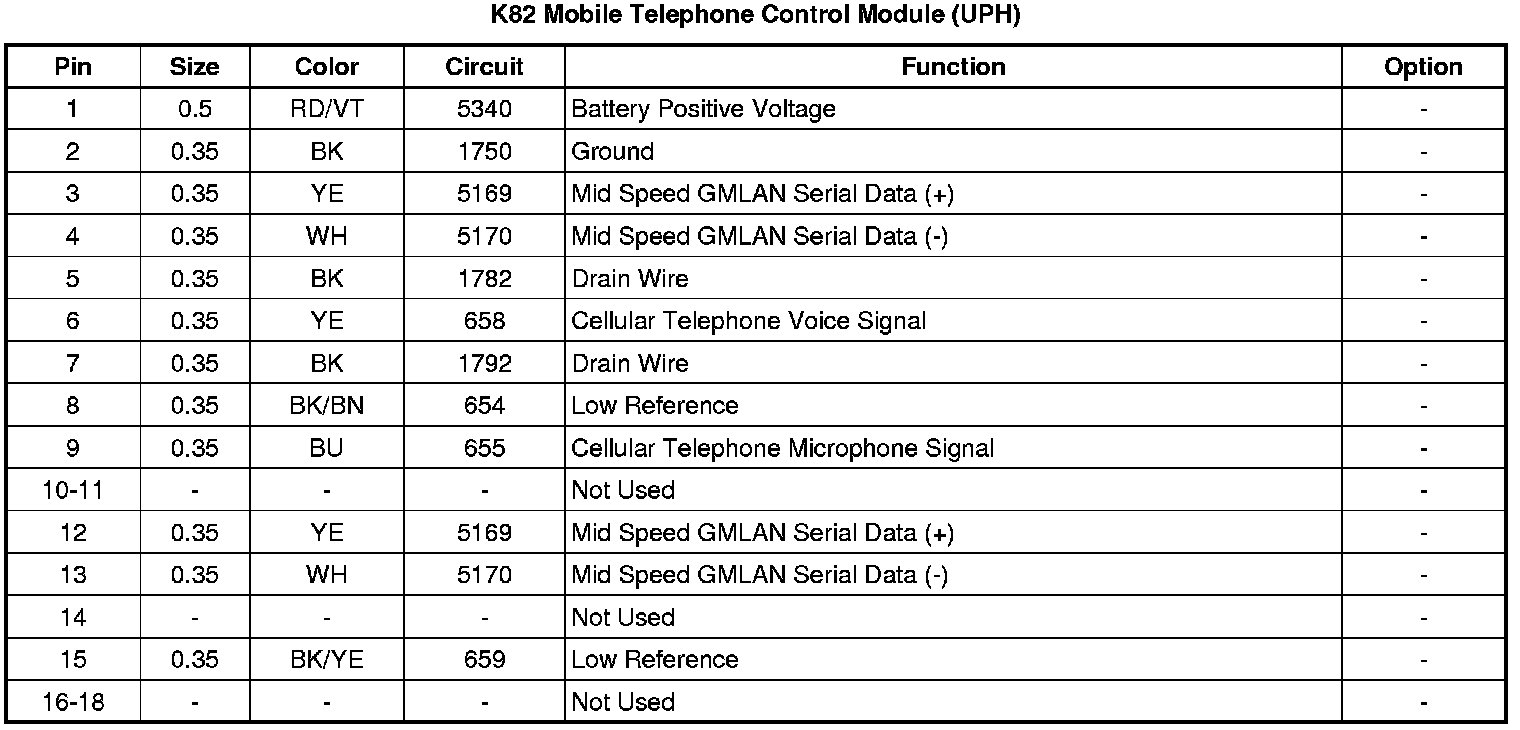

K82 Mobile Telephone
Control Module
(UPH)
