Data Link Resistor (KTA or UPH without UBT)
Data Link Resistor (KTA or UPH without UBT)

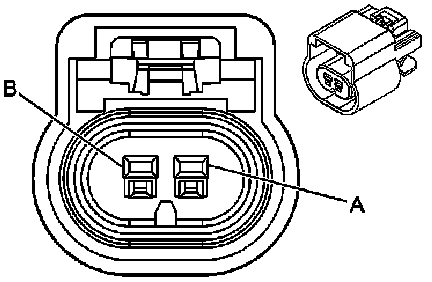

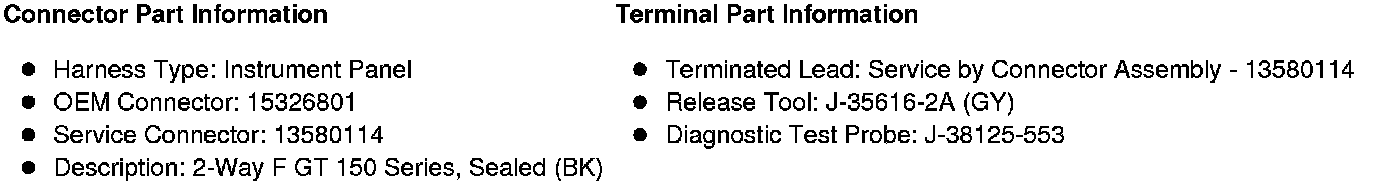

Component Connector End Views

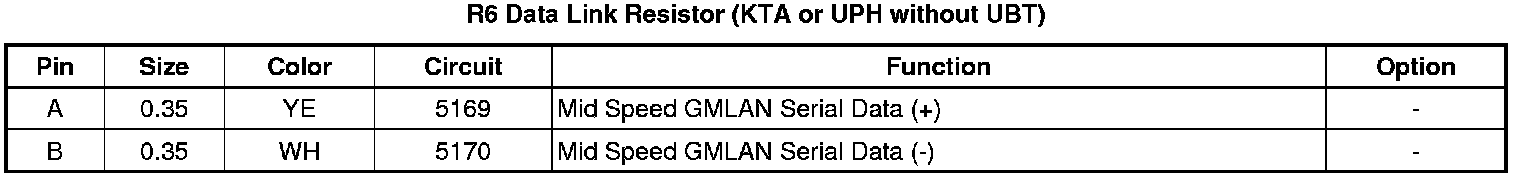

R6 Data Link Resistor (KTA or UPH without UBT)
