Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2012
>>
Malibu L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
Tail Lamp
Component Connector End Views

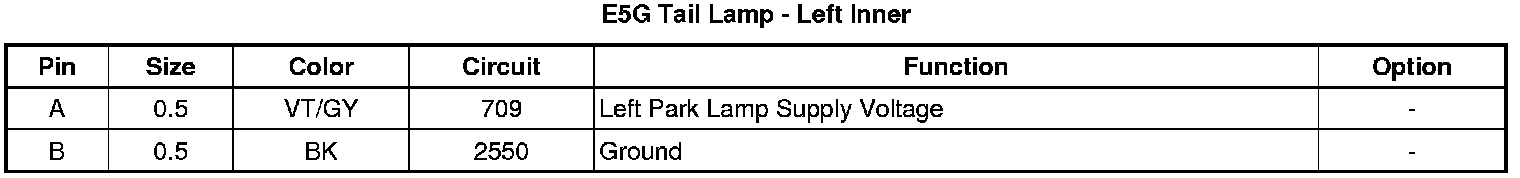

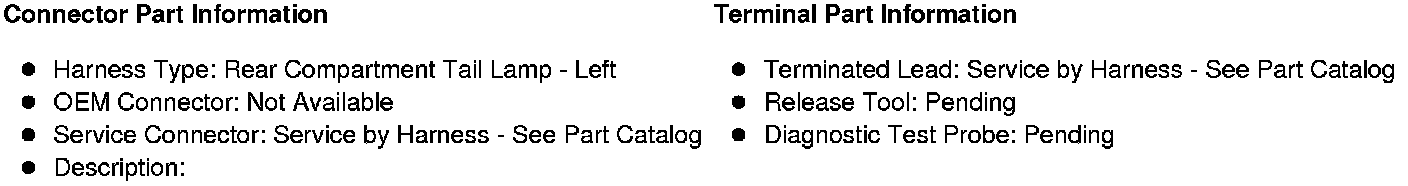

E5G Tail Lamp - Left Inner
