Power Window Motor
>>
Window Motor- Passenger
Window Motor- Passenger

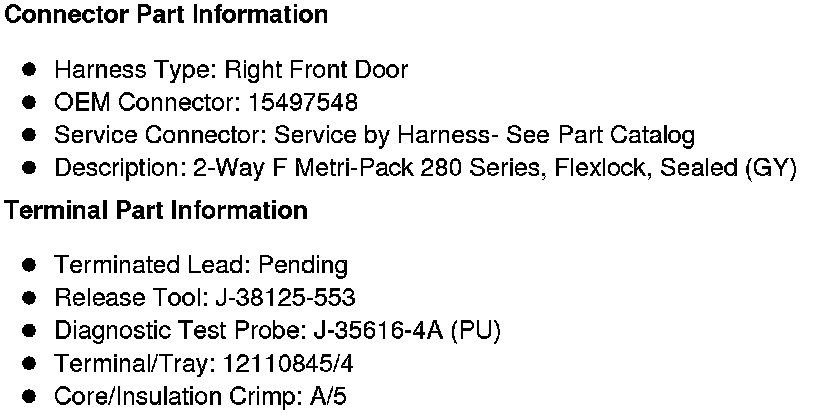

Component Connector End Views

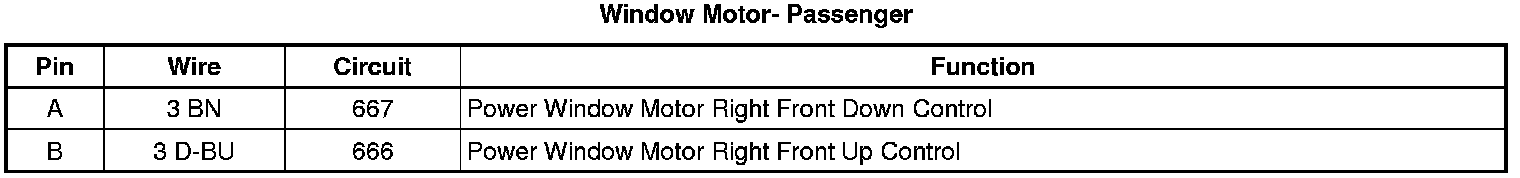

Window Motor- Passenger
