Home
>>
Chevrolet
>>
2012
>>
Impala V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
Window Motor- Driver
Window Motor- Driver

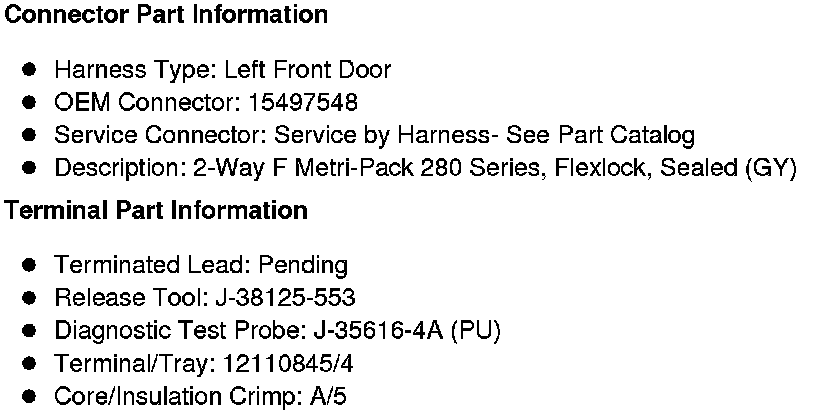

Component Connector End Views

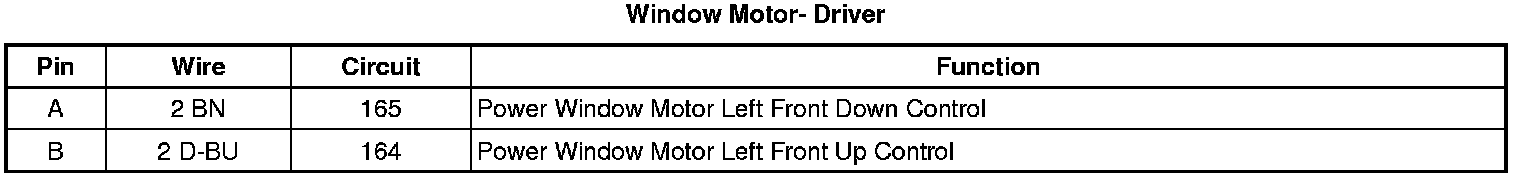

Window Motor- Driver
