Home
>>
Chevrolet
>>
2012
>>
Impala V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>
Inflatable Restraint Front End Sensor- Right
Inflatable Restraint Front End Sensor- Right

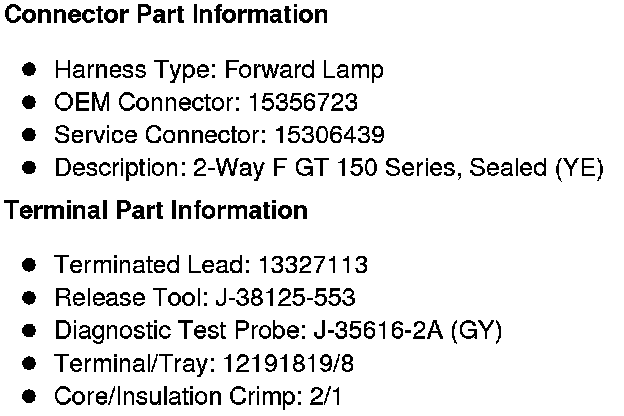

Component Connector End Views

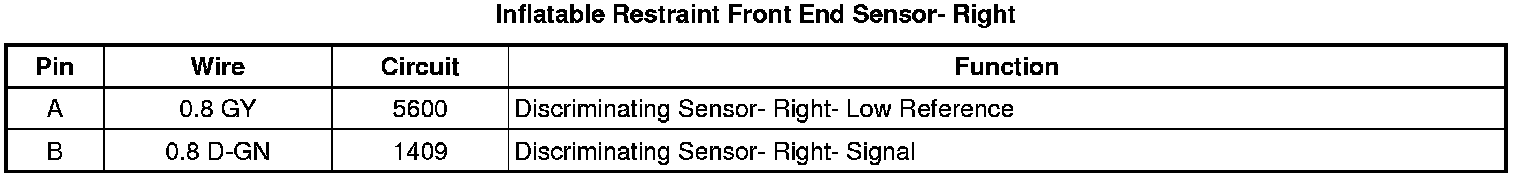

Inflatable Restraint Front End Sensor- Right
