Chevrolet
>>
2012
>>
Impala V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Side Marker Lamp- Right Front
Side Marker Lamp- Right Front

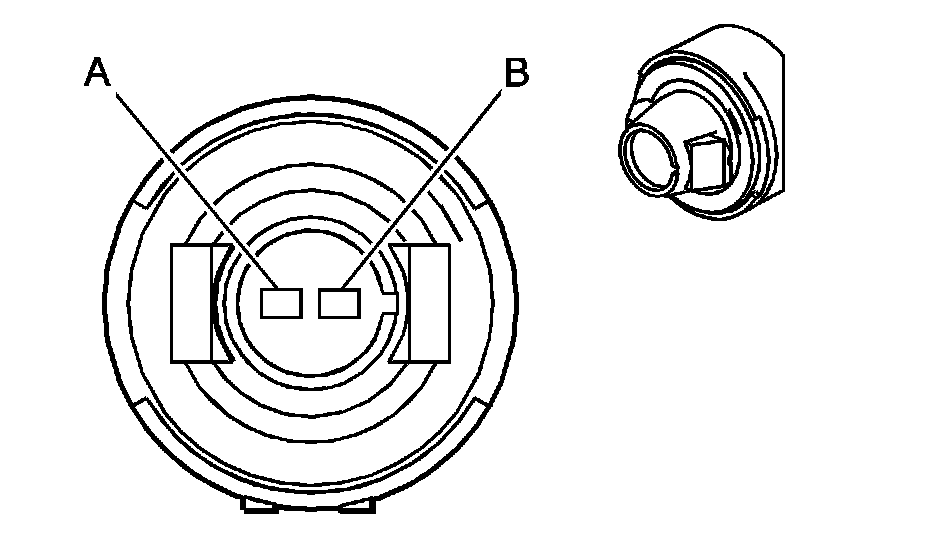

Component Connector End Views

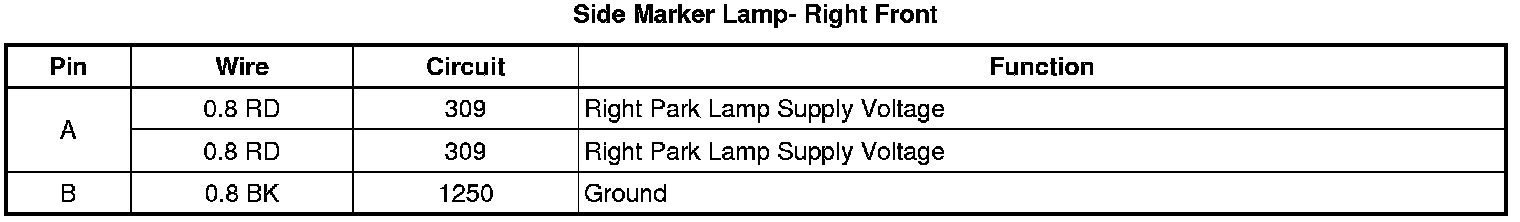

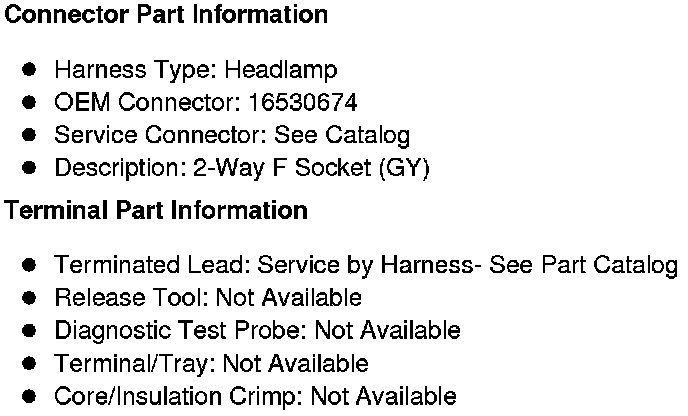

Side Marker Lamp- Right Front
