Inflatable Restraint Roof Rail Module- Right
Inflatable Restraint Roof Rail Module- Right

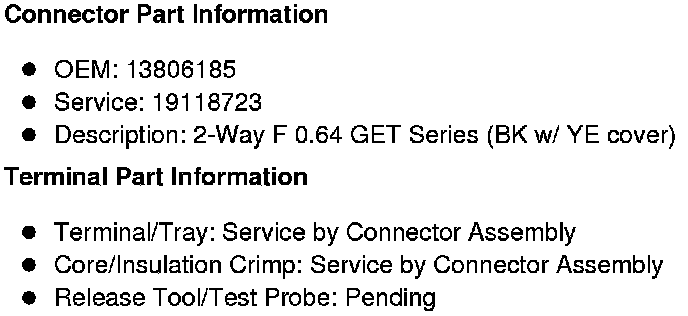

Component Connector End Views

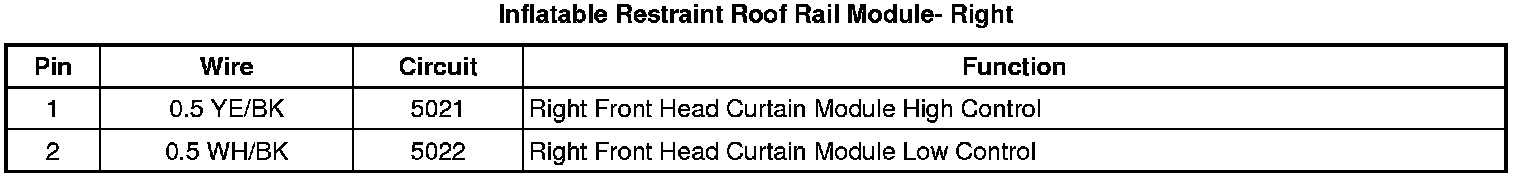

Inflatable Restraint Roof Rail Module- Right
