Engine - Coolant Temperature Sensor/Switch
>>
Engine Coolant Temperature Sensor 1
Engine Coolant Temperature Sensor 1

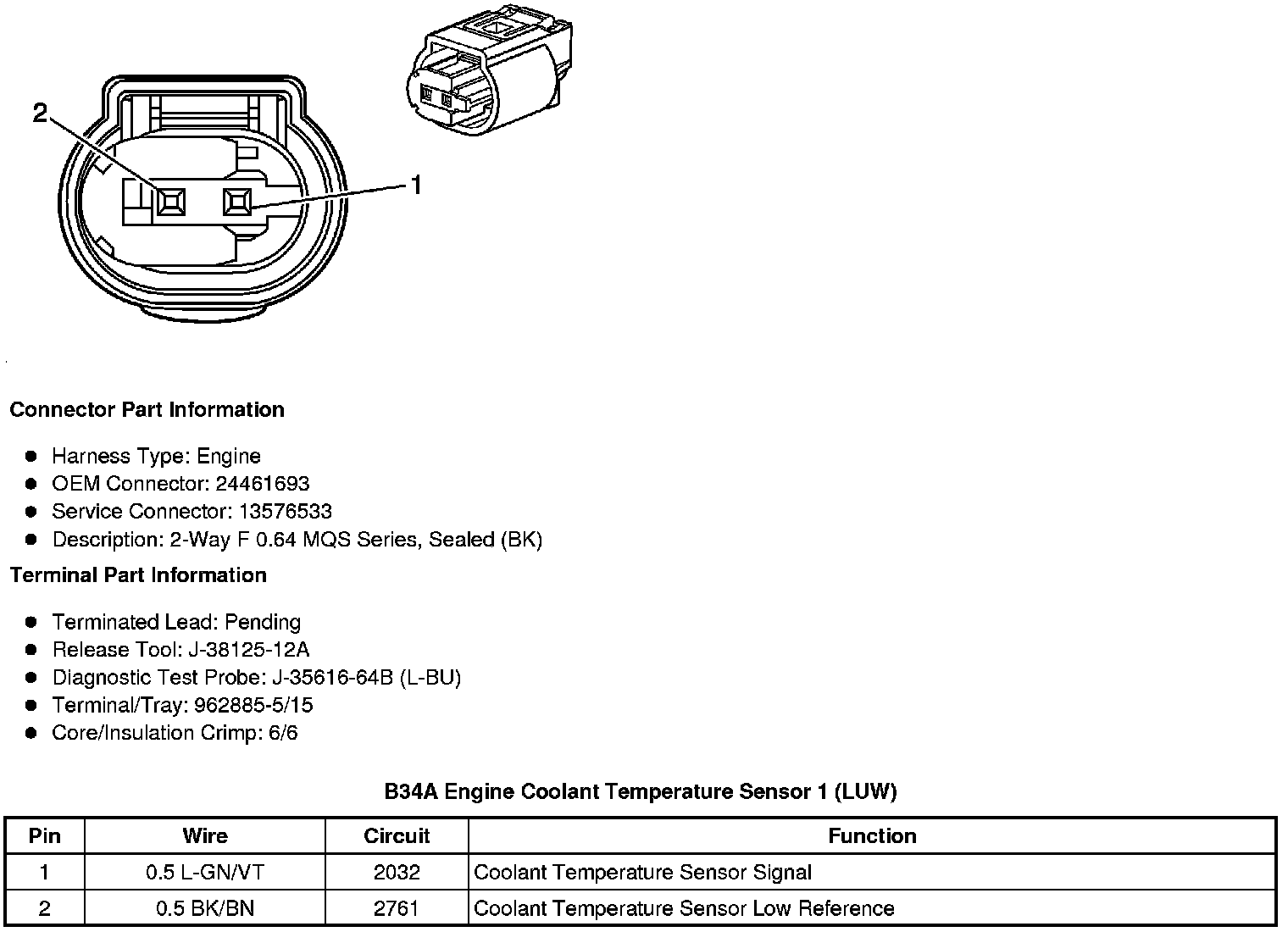

Component Connector End Views
B34A Engine Coolant Temperature Sensor 1 (LUW)
