Control Assembly, HVAC
Control Assembly, HVAC

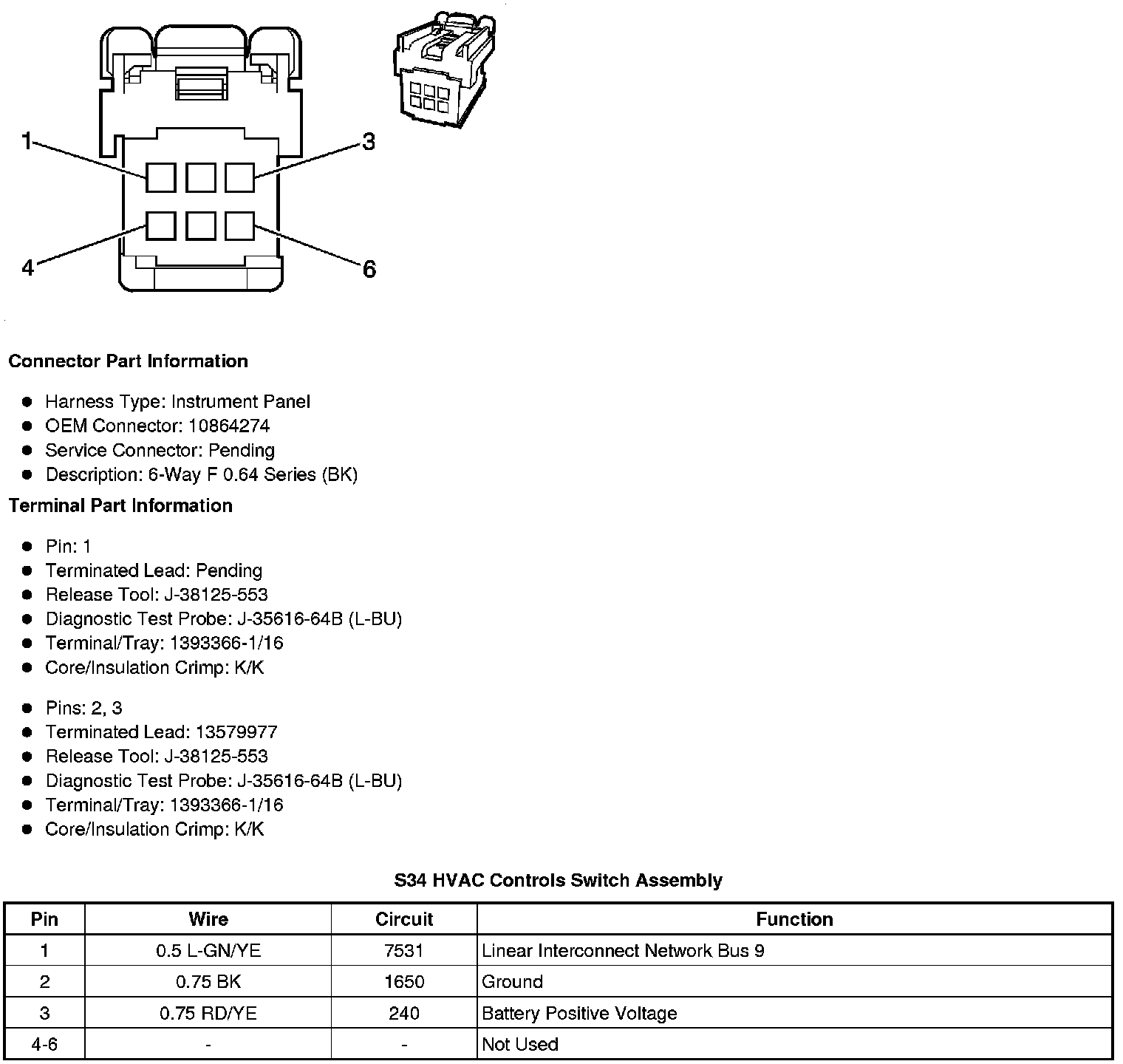

Component Connector End Views
S34 HVAC Controls Switch Assembly
