Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2012
>>
Corvette V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna - Keyless Entry
>>
Keyless Entry Antenna - Left
Keyless Entry Antenna - Left

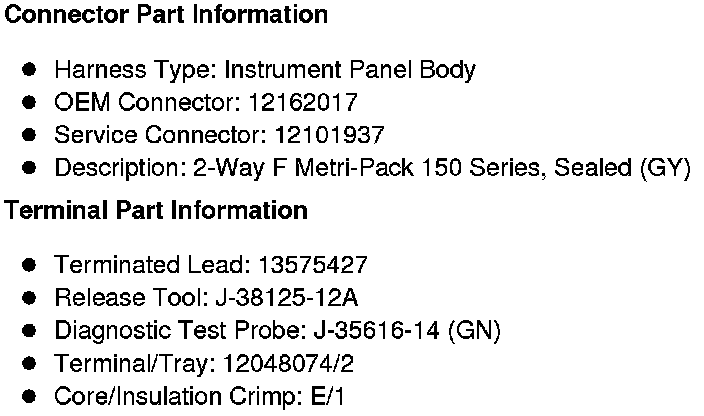

Component Connector End Views

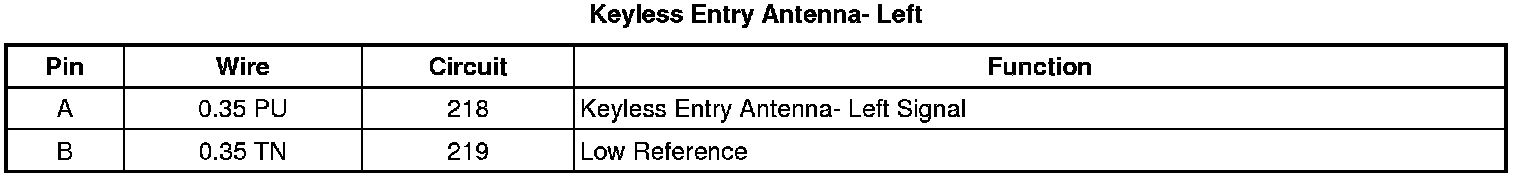

Keyless Entry Antenna- Left
