Steering Mounted Controls Assembly
Steering Mounted Controls Assembly

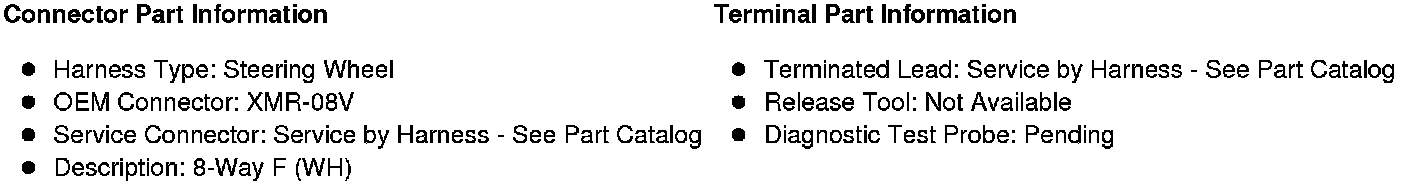

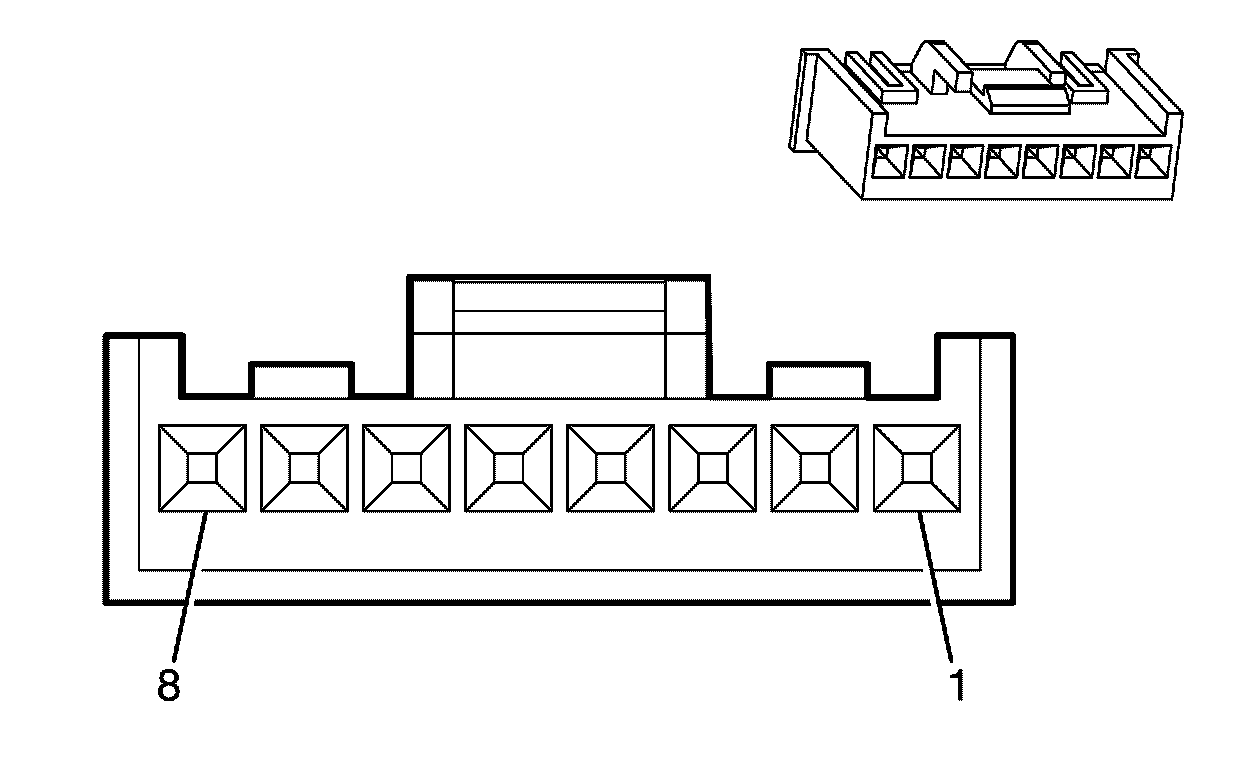

Component Connector End Views

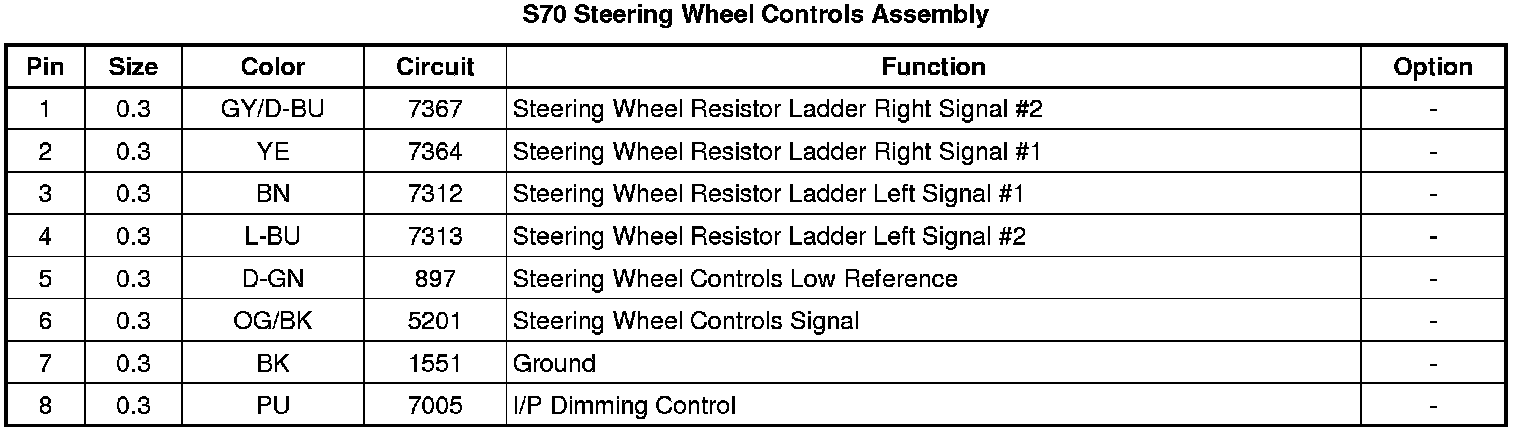

S70 Steering Wheel Controls Assembly
