Air Temperature Sensor
Air Temperature Sensor
Component Connector End Views

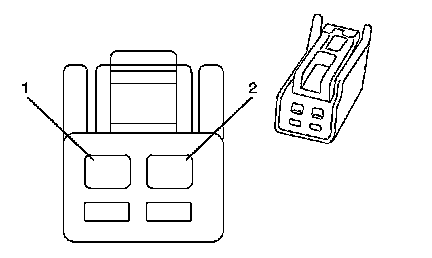

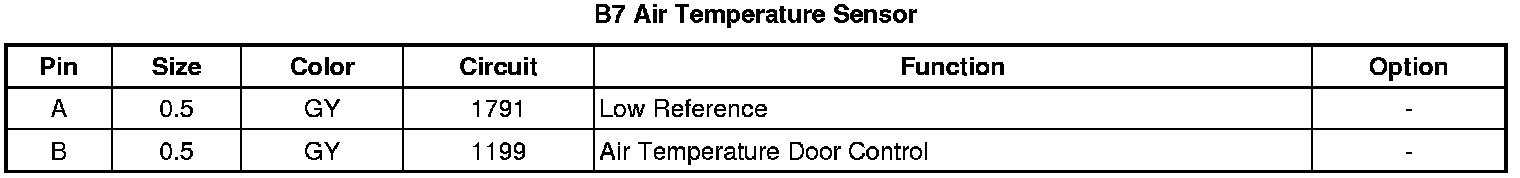

B7 Air Temperature Sensor
